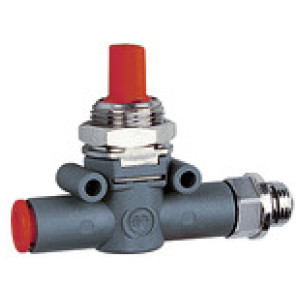

Blokirni ventil, (vhodni) - z navojem (izhodni), G 1/8, 8
SKU: 106839RIE
EAN: 9065210
Blocking valve »lineonline«, Hose (inlet) - thread (outlet), G 1/8, for hose Ø 8 mm, Operating pressure max. 10 bar
2/2-way type. For manual opening and closing of compressed air pipes.
Čas dobave: Predvidoma 3 - 5 dni
28,40 €

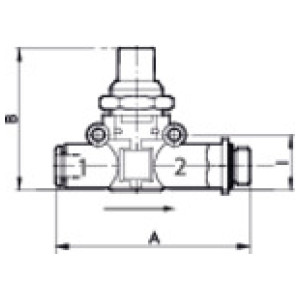

| Šifra | Navoj | Za cevi Ø [mm] | I [mm] | B [mm] | A [mm] | Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 106840RIE | G 1/4 | 6 | 14.6 | 41.0 | 61.3 | 280 | Čas dobave: Predvidoma 3 - 5 dni | 27,78 € |  | |
| 106838RIE | G 1/8 | 6 | 14.6 | 41.0 | 58.3 | 280 | Čas dobave: Predvidoma 3 - 5 dni | 27,32 € | | |
| 106839RIE | G 1/8 | 8 | 18.7 | 46.0 | 66.4 | 470 | Čas dobave: Predvidoma 3 - 5 dni | 28,40 € | | |
| 106841RIE | G 1/4 | 8 | 18.7 | 46.0 | 70.8 | 470 | Čas dobave: Predvidoma 3 - 5 dni | 30,16 € | | |
| 106842RIE | G 3/8 | 8 | 18.7 | 46.0 | 72.4 | 470 | Čas dobave: Predvidoma 3 - 5 dni | 31,59 € | |
Opis
Blocking valve »lineonline«, Hose (inlet) - thread (outlet), G 1/8, for hose Ø 8 mm, Operating pressure max. 10 bar
2/2-way type. For manual opening and closing of compressed air pipes.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. obratovalni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Telo | Technopolymer |
| Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |

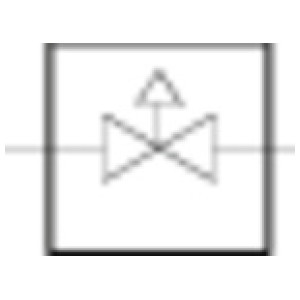

| Pnevmatski simboli | On housing |
| Navoj | G 1/8 |
| Za cevi Ø [mm] | 8 |
| A [mm] | 66.4 |
| B [mm] | 46.0 |
| I [mm] | 18.7 |
| Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] | 470 |
