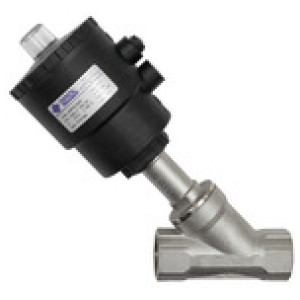

Batni kotni ventil, NC, nerjavno jeklo, G 3/4
SKU: 133207RIE
EAN: 4047322476980
Angle seat valve, Piston drive without NAMUR interface, NC, Medium temp. -10°C to 180°C, G 3/4, Pressure difference max 10 bar
Angle-seat valves with external pilot control and a self-aligning valve disc for neutral (bronze body) or corrosive (stainless steel body) media.
- Very high flow due to angled seat design
- Water hammer prevented by fluid entry under the disc
- Suitable for vacuum operation (low vacuum)
Čas dobave: Predvidoma 3 - 5 dni
284,54 €
ali od 13,93 € / mesec
Izračunaj obrok
Obrestno financiranje
- 13,93 € x 24 mesecev
- 26,67 € x 12 mesecev
- 52,17 € x 6 mesecev
- 103,18 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

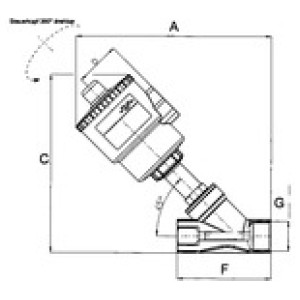

| Šifra | Navoj | Max. razlika v delovnem tlaku [bar] | F [mm] | C [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 133209RIE | G 1 | 11 | 105.0 | 202.0 | 219.0 | Čas dobave: Predvidoma 3 - 5 dni | 357,29 € |  | |
| 133206RIE | G 1/2 | 16 | 85.0 | 169.0 | 190.0 | Čas dobave: Predvidoma 3 - 5 dni | 271,58 € | | |
| 133208RIE | G 3/4 | 16 | 95.0 | 195.0 | 213.0 | Čas dobave: Predvidoma 3 - 5 dni | 305,45 € | | |
| 133207RIE | G 3/4 | 10 | 95.0 | 176.0 | 195.0 | Čas dobave: Predvidoma 3 - 5 dni | 284,54 € | |
Opis
Angle seat valve, Piston drive without NAMUR interface, NC, Medium temp. -10°C to 180°C, G 3/4, Pressure difference max 10 bar
Angle-seat valves with external pilot control and a self-aligning valve disc for neutral (bronze body) or corrosive (stainless steel body) media.
- Very high flow due to angled seat design
- Water hammer prevented by fluid entry under the disc
- Suitable for vacuum operation (low vacuum)
Tehnični podatki in specifikacije
| Ohišje | Stainless steel AISI 316 |
| Navoj | G 3/4 |
| Steblo | Stainless steel |
| Tesnilo | PTFE |
| Operater | Polyamide (glass fibre-reinforced) |
| Nadzor zraka | G 1/8 |
| Min. vodeni tlak [bar] | 4 |
| Max. vodeni tlak [bar] | 10 |
| Bat | Nickel-plated brass |
| Diferencialni tlak max. [bar] | 16 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 180 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 70 |
| Max. temperatura vodenega medija [°C] | 60 |
| Max. dovoljeni statični tlak [bar] | 16 |
| Max. razlika v delovnem tlaku [bar] | 10 |
| Priključki | Stainless steel |
| Ffunkcija | NC |
| F [mm] | 95.0 |
| C [mm] | 176.0 |
| A [mm] | 195.0 |
