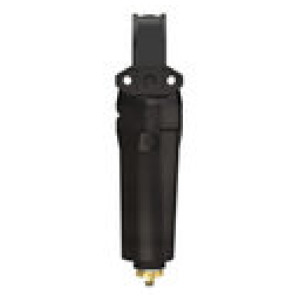

Active charcoal filter with differential pressure gauge, G 3/8 slika

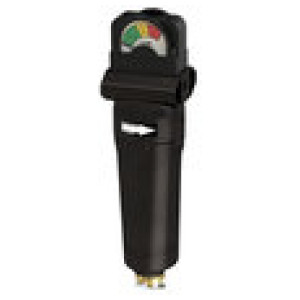

Active charcoal filter with differential pressure gauge, G 3/8 slika

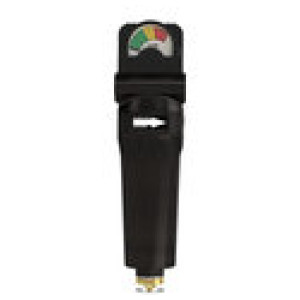

Active charcoal filter with differential pressure gauge, G 3/8 slika

* slike so simbolične

Active charcoal filter with differential pressure gauge, G 3/8

SKU: 199819RIE
EAN: 4047322715614

Active charcoal filter with differential pressure gauge, 0.003 mg/m³, G 3/8, Input pressure 4 - 16 bar, Temp. 1.5 °C to 80 °C

For adsorbing vaporous media.

A micro-filter must be connected upstream if dried air is not available.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Navoj C [mm] A [mm] D [mm] Pretok [l/min] Zaloga Cena Nakup Natisni
199819RIE G 3/8 23.5 80.0 327.0 1000
Ni na zalogi
 ? Povpraševanje Natisni
199821RIE G 1/2 28.0 104.0 399.0 1500
Ni na zalogi
 ? Povpraševanje Natisni
199823RIE G 3/4 28.0 104.0 399.0 3666
Ni na zalogi
 ? Povpraševanje Natisni
199817RIE G 1/4 23.5 80.0 327.0 583
Ni na zalogi
 ? Povpraševanje Natisni

Opis

Active charcoal filter with differential pressure gauge, 0.003 mg/m³, G 3/8, Input pressure 4 - 16 bar, Temp. 1.5 °C to 80 °C

For adsorbing vaporous media.

A micro-filter must be connected upstream if dried air is not available.

Tehnični podatki in specifikacije

Navoj G 3/8
Max. vhodni tlak [bar] 16
Ohišje Aluminium
Element filtra non-woven medium, impregnated with activated carbon
Rang filtra [µm] 0.00
Posoda filtra Aluminium
Min. temperatura medija [°C] 1.5
Max. temperatura medija [°C] 80
Min. sobna temperatura [°C] 1.5
Max. sobna temperatura [°C] 80
Pretok [l/min] 1000
Max. označeni razpon diferencialnega manometra [bar] 2
A [mm] 80.0
C [mm] 23.5
D [mm] 327.0
Merjenje pretoka At P1 = 7 bar and pressure drop Δp = 0.1 bar
Učinkovitost [%] 99.9999
Vsebnost olja v ostanku [mg/m³] 0.003
