* slike so simbolične

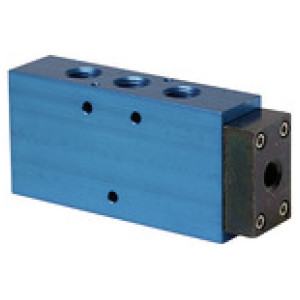

5/2-pot.vent., enostranski pnevm., monostab., G 1/2, DN 15
SKU: 106601RIE
EAN: 4047322278652
5/2-way valve, Single-sided pneumatic, monostable, G 1/2, DN 15, Operating pre. 2.5 to 10 bar, Operating temp. -10 °C to 60 °C
This valve design, featuring the Tapered Tee Seal®, offers the ability to run without lubrication and supports almost any compressed air quality.
The valves are largely resistant to dirt and can thus also be used under extreme conditions without any problems.
Leakage is now a thing of the past and the spool no longer sticks, even after long idle periods.
Obrestno financiranje
- 10,25 € x 48 mesecev
- 13,10 € x 36 mesecev
- 18,82 € x 24 mesecev
- 36,03 € x 12 mesecev
- 70,47 € x 6 mesecev
- 139,38 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Povezava | DN | Pretok 1 [Nl/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 106601RIE | G 1/2 | 15 | 4600 | Čas dobave: Predvidoma 3 - 5 dni | 385,28 € |  | |
| 106600RIE | G 1/4 | 7.5 | 1500 | Čas dobave: Predvidoma 3 - 5 dni | 136,99 € | |
Opis
5/2-way valve, Single-sided pneumatic, monostable, G 1/2, DN 15, Operating pre. 2.5 to 10 bar, Operating temp. -10 °C to 60 °C
This valve design, featuring the Tapered Tee Seal®, offers the ability to run without lubrication and supports almost any compressed air quality.
The valves are largely resistant to dirt and can thus also be used under extreme conditions without any problems.
Leakage is now a thing of the past and the spool no longer sticks, even after long idle periods.
Tehnični podatki in specifikacije
| Min. obratovalni tlak [bar] | 2.5 |
| Max. obratovalni tlak [bar] | 10 |
| Min. vodeni tlak [bar] | 2.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 60 |
| Merjenje pretoka 1 | Flow rate at 6 bar and ?p 1.0 bar |
| Tesnilo | NBR |
| Električni priključek | Coupler plug PG 9, form B |
| IP zaščita | IP 65 (DIN 46244) |
| Ohišje | Anodised aluminium, blue |
| Tuljava | Stainless steel |
| Povezava | G 1/2 |
| Ročno upravljanje | non-latching |
| Ffunkcija | 5/2 |
| Delovanje | Monostable |
| Pretok 1 [Nl/min] | 4600 |
| DN | 15 |

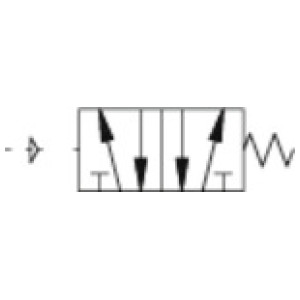

| Simbol | 27 |
