3/2-way toggle lever valve, Hose side, screw connection, G 1/8
SKU: 107023RIE
EAN: 4047322181297
3/2-way toggle lever valve, Hose side, screw connection hose G1/8 IT, G 1/8, PN max.8bar, Temp. -20°C to 80°C, nickel-plated brass
Manually operated toggle valve, 3/2-way types. For all applications where compressed air must be switched on or off quickly and easily or a cylinder operated manually. Designed as a banjo-type valve with a hollow bolt and ring piece. Suitable for screwing directly into the equipment or for panel mounting. Compact type of construction, also ideal where space is restricted.

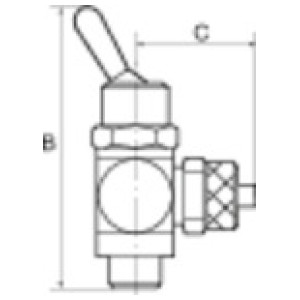

| Šifra | Navoj | Za cevi [mm] | a/f [mm] | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 107023RIE | G 1/8 | G 1/8 female thread | 14 | 16.0 | 55.0 | Čas dobave: Predvidoma 3 - 5 dni | 40,02 € |  | |
| 107027RIE | G 1/4 | G 1/4 female thread | 17 | 22.0 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 44,90 € | |
Opis
3/2-way toggle lever valve, Hose side, screw connection hose G1/8 IT, G 1/8, PN max.8bar, Temp. -20°C to 80°C, nickel-plated brass
Manually operated toggle valve, 3/2-way types. For all applications where compressed air must be switched on or off quickly and easily or a cylinder operated manually. Designed as a banjo-type valve with a hollow bolt and ring piece. Suitable for screwing directly into the equipment or for panel mounting. Compact type of construction, also ideal where space is restricted.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 8 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 80 |
| Votli vijak | Nickel-plated brass |
| Nihajna roka | Nickel-plated brass |
| Notranji deli | Brass with a bare metal surface |
| Tesnilo | NBR |
| Zarobljena tesnila | Polyamide (glass fibre-reinforced) |
| Preklop | Nickel-plated brass |
| Navoj | G 1/8 |
| Povezava | Pressure port on hose side |
| Za cevi [mm] | G 1/8 female thread |
| B [mm] | 55.0 |
| C [mm] | 16.0 |
| a/f [mm] | 14 |
| Navoj za pritrditev plošče | M12x0.75 (max. plate thickness 4 mm) |

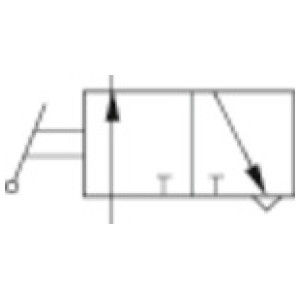

| Ffunkcija | 3/2-way |
| Vrsta povezave | Screw connection |
