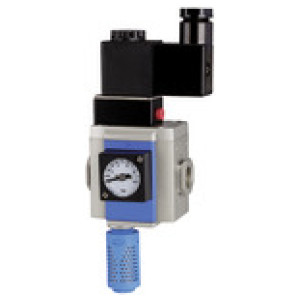

3/2 Vklopni ventil »G-mali«, 24 V DC, Velikost 200, G 1/4
SKU: 116343RIE
EAN: 4047322308953
3/2-way start-up valve »G-mini«, 24 V DC, with mounting bracket and silencer, Size 200, G 1/4, Input pressure 2.5 - 9 bar
Combined shut-off and pressure build-up valve (start-up valve). Operated by secondary pressure for controlled pressurisation of pneumatic systems.
The 3/2-way valve opens when the solenoid is activated. The full cross-section of the valve is open when the working pressure is 50% of the input pressure. When the solenoid is deactivated, the 3/2-way valve closes and the pressure in the line is exhausted via the regulator. With adjustable restrictor.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 17,94 € x 6 mesecev
- 35,48 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|
116343RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 97,54 € | | |
116341RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 97,54 € | |
Opis
3/2-way start-up valve »G-mini«, 24 V DC, with mounting bracket and silencer, Size 200, G 1/4, Input pressure 2.5 - 9 bar
Combined shut-off and pressure build-up valve (start-up valve). Operated by secondary pressure for controlled pressurisation of pneumatic systems.
The 3/2-way valve opens when the solenoid is activated. The full cross-section of the valve is open when the working pressure is 50% of the input pressure. When the solenoid is deactivated, the 3/2-way valve closes and the pressure in the line is exhausted via the regulator. With adjustable restrictor.
Tehnični podatki in specifikacije
Navoj | G 1/4 |
Max. vhodni tlak [bar] | 9 |
Velikost | 200 |
Min. vhodni tlak [bar] | 2.5 |
Ohišje | Die-cast aluminium |
Tesnilo | NBR |
Max. temperatura medija [°C] | 70 |
Max. sobna temperatura [°C] | 70 |
Pretok [l/min] | 550 |

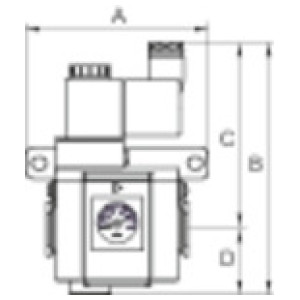

A [mm] | 59.0 |
B [mm] | 123.5 |
C [mm] | 93.5 |
D [mm] | 30.0 |
Serija | G-mini |
Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
Električni priključek | Device plug PG 9, type B |
