* slike so simbolične

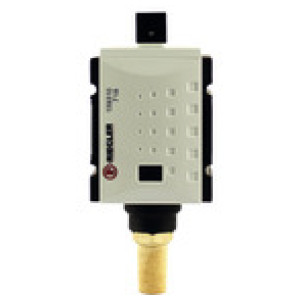

3/2 ventil »FUTURA«, pnevmatsko voden, Velikost 2, G 3/8
SKU: 139309RIE
EAN: 4047322531085
3/2-way valve »FUTURA«, pneumatically actuated, Size 2, G 3/8, Exhaust G 1/2, Input pressure max. 16 bar, Temp. -10 °C to 50 °C
Pneumatic systems or parts of systems can be switched on and off by means of an pneumatic signal.

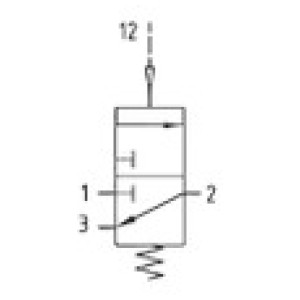

3/2-way type including silencer.
When they are switched off, the system is exhausted at the same time.
Obrestno financiranje
- 11,88 € x 12 mesecev
- 23,25 € x 6 mesecev
- 45,98 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

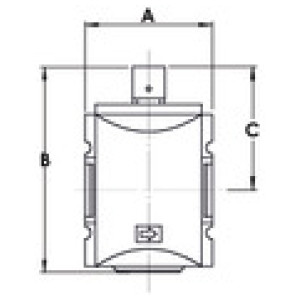

| Šifra | Izpušni zrak | Navoj | Velikost | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 156617RIE | G 1/4 | G 3/8 | 1 | 52.0 | 52.1 | 85.1 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 86,64 € |  | |
| 139309RIE | G 1/2 | G 3/8 | 2 | 63.0 | 61.1 | 117.6 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 127,01 € | | |
| 156619RIE | G 1/2 | G 1 | 4 | 85.0 | 78.0 | 145.0 | 12500 | Čas dobave: Predvidoma 3 - 5 dni | 235,24 € | | |
| 156618RIE | G 1/2 | G 3/4 | 4 | 85.0 | 78.0 | 145.0 | 12500 | Čas dobave: Predvidoma 3 - 5 dni | 235,24 € | | |
| 156616RIE | G 1/4 | G 1/4 | 1 | 52.0 | 52.1 | 85.1 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 86,64 € | | |
| 139310RIE | G 1/2 | G 1/2 | 2 | 63.0 | 61.1 | 117.6 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 127,01 € | |
Opis
3/2-way valve »FUTURA«, pneumatically actuated, Size 2, G 3/8, Exhaust G 1/2, Input pressure max. 16 bar, Temp. -10 °C to 50 °C
Pneumatic systems or parts of systems can be switched on and off by means of an pneumatic signal.
3/2-way type including silencer.
When they are switched off, the system is exhausted at the same time.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 2 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Pretok [l/min] | 4500 |
| Izpušni zrak | G 1/2 |
| A [mm] | 63.0 |
| B [mm] | 117.6 |
| C [mm] | 61.1 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
