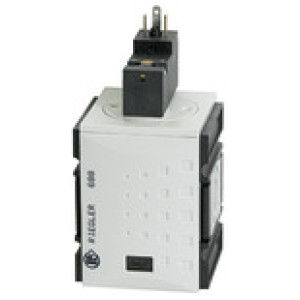

3/2 ventil »FUTURA«, Elektr. voden, 230 V AC, Velikost 2, G 3/8
SKU: 100302RIE
EAN: 4047322214933
3/2-way valve »FUTURA«, electr. actuated with solenoid 230 V AC, 50 Hz, Size 2, G 3/8, Exhaust G 1/2, Input pressure 2 - 10 bar
Pneumatic systems or parts of systems can be switched on and off by means of an electrical signal.
3/2-way type including silencer.
When they are switched off, the system is exhausted at the same time.
Obrestno financiranje
- 12,73 € x 12 mesecev
- 24,89 € x 6 mesecev
- 49,24 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

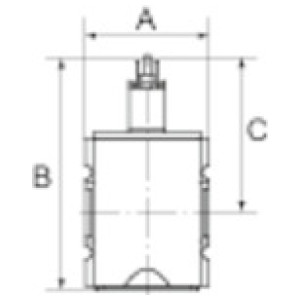

| Šifra | Izpušni zrak | Navoj | Velikost | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100305RIE | G 1/2 | G 1 | 4 | 85.0 | 110.7 | 177.7 | 12500 | Čas dobave: Predvidoma 3 - 5 dni | 282,98 € |  | |
| 100301RIE | G 1/4 | G 3/8 | 1 | 52.0 | 84.8 | 117.8 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 127,93 € | | |
| 100302RIE | G 1/2 | G 3/8 | 2 | 63.0 | 93.8 | 150.3 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 136,30 € | | |
| 100303RIE | G 1/2 | G 1/2 | 2 | 63.0 | 93.8 | 150.3 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 136,30 € | | |
| 100300RIE | G 1/4 | G 1/4 | 1 | 52.0 | 84.8 | 117.8 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 127,93 € | | |
| 100304RIE | G 1/2 | G 3/4 | 4 | 85.0 | 110.7 | 177.7 | 12500 | Čas dobave: Predvidoma 3 - 5 dni | 282,98 € | |
Opis

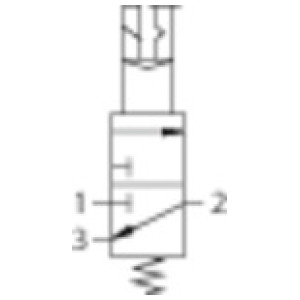

3/2-way valve »FUTURA«, electr. actuated with solenoid 230 V AC, 50 Hz, Size 2, G 3/8, Exhaust G 1/2, Input pressure 2 - 10 bar
Pneumatic systems or parts of systems can be switched on and off by means of an electrical signal.
3/2-way type including silencer.
When they are switched off, the system is exhausted at the same time.
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 10 |
| Velikost | 2 |
| Min. vhodni tlak [bar] | 2 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Vhodna moč | 2.5 Watt with DC voltage |
| Dvižna moč pri 50 Hz AC napetosti [VA] | 2.2 |
| Zaklepna moč pri 50 Hz AC napetosti [VA] | 1.6 |
| Pretok [l/min] | 4500 |
| Izpušni zrak | G 1/2 |
| A [mm] | 63.0 |
| B [mm] | 150.3 |
| C [mm] | 93.8 |
| Serija | FUTURA |
| Merjenje pretoka | At P2 = 6 bar and pressure drop Δp = 1 bar |
| Srednje | Compressed air, neutral gases |
| Delovni cikel [%] | 100 |
| IP zaščita | IP 65 |
| Električni priključek | Socket coupling EN 175301-803, form C, poles 2+PE |
