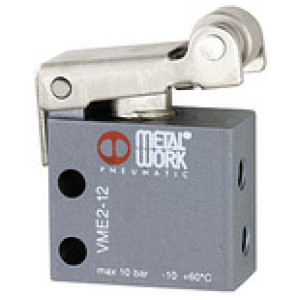

3/2-potni miniature ventil, mehanski,s koleščkom,NC,4 mm stranski
SKU: 106395RIE
EAN: W3501001201
3/2-way miniature valve mechanical, Roller lever, NC, Connect. 4 mm side, Operating pre. 0.5-10 bar, Operating temp. -10°C to 60°C
Miniature valves, 3/2-way type, NC or NO.
Čas dobave: Predvidoma 3 - 5 dni
26,02 €
| Šifra | Povezava | Ffunkcija | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 106396RIE | M5 female thread on side | 3/2 NC | Čas dobave: Predvidoma 3 - 5 dni | 23,81 € |  | |
| 106395RIE | Plug-in connector Ø 4 mm on side | 3/2 NC | Čas dobave: Predvidoma 3 - 5 dni | 26,02 € | | |
| 106393RIE | Plug-in connector Ø 4 mm on side | 3/2 NO | Čas dobave: Predvidoma 3 - 5 dni | 28,10 € | | |
| 106394RIE | M5 female thread on side | 3/2 NO | Čas dobave: Predvidoma 3 - 5 dni | 28,10 € | |
Opis
3/2-way miniature valve mechanical, Roller lever, NC, Connect. 4 mm side, Operating pre. 0.5-10 bar, Operating temp. -10°C to 60°C
Miniature valves, 3/2-way type, NC or NO.
Tehnični podatki in specifikacije
| Min. obratovalni tlak [bar] | 0.5 |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 60 |
| Delovni tlak pri 6 bar [N] | 8 |
| Pretok pri 6 bar in Δp 0,5 bar [Nl/min] | 35 |
| Telo ventila | Aluminium |
| Pritisni gumb | Nickel-plated brass |
| Tesnilo | NBR |
| Vzmet | Stainless steel |
| Povezava | Plug-in connector Ø 4 mm on side |

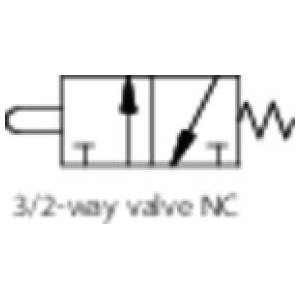

| Ffunkcija | 3/2 NC |
| Nominalni Ø [mm] | 2.5 |
