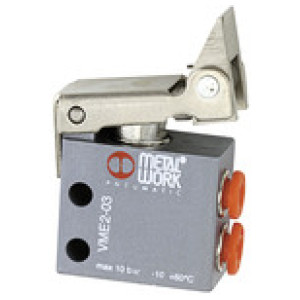

3/2-potni mini ventil, mehanski, s koleščkom povratni M5 stranski
SKU: 106392RIE
EAN: W3501001311
3/2-way miniature valve, Mechanical, Roller lever free Return, M5 (side), Operating pre. 0.5-10 bar, Operating temp. -10°C to 60°C
Miniature valves, 3/2-way type, NC or NO.
Čas dobave: Predvidoma 3 - 5 dni
27,78 €
| Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 106392RIE | M5 female thread on side | Čas dobave: Predvidoma 3 - 5 dni | 27,78 € |  | |
| 106391RIE | Plug-in connector Ø 4 mm on side | Čas dobave: Predvidoma 3 - 5 dni | 28,10 € | |
Opis
3/2-way miniature valve, Mechanical, Roller lever free Return, M5 (side), Operating pre. 0.5-10 bar, Operating temp. -10°C to 60°C
Miniature valves, 3/2-way type, NC or NO.
Tehnični podatki in specifikacije
| Min. obratovalni tlak [bar] | 0.5 |
| Max. obratovalni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 60 |
| Delovni tlak pri 6 bar [N] | 8 |
| Pretok pri 6 bar in Δp 0,5 bar [Nl/min] | 35 |
| Telo ventila | Aluminium |
| Pritisni gumb | Nickel-plated brass |
| Tesnilo | NBR |
| Vzmet | Stainless steel |
| Povezava | M5 female thread on side |

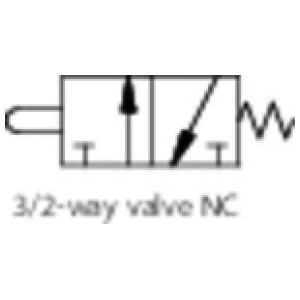

| Ffunkcija | 3/2 NC |
| Nominalni Ø [mm] | 2.5 |
