3/2-potni mini el.megnet.ventil neposred.upravl.,NO, 24 VDC kabel
SKU: 106646RIE
EAN: 4047322156547

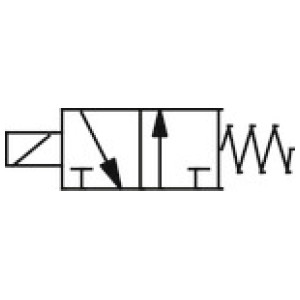

3/2-way mini solenoid valve directly controlled, DN 1.5 mm, NO, 24 VDC, Cable (30 cm), Pressure 0 - 5 bar, Temp. -5 °C to 45 °C

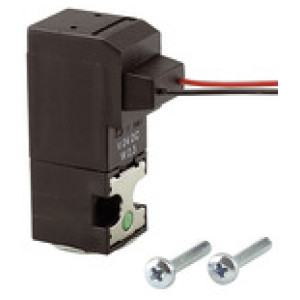

Directly controlled 3/2-way solenoid valves specially designed for pneumatic applications. These valves are provided with a flange for assembly on an individual base or multiple manifold base. They feature a monostable manual operator. The scope of supply includes two fixing bolts and a flange gasket. The coils can be turned 180°.
| Šifra | Ploščica na ročnem upravljalcu | Povezava | Ffunkcija | Max. obratovalni tlak [bar] | Napetost | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 106646RIE | Black | Cable (30 cm) | 3/2 NO | 5 | 24 V DC | Čas dobave: Predvidoma 3 - 5 dni | 38,31 € |  | |
| 106642RIE | Silver | Cable (30 cm) | 3/2 NC | 7 | 24 V DC | Čas dobave: Predvidoma 3 - 5 dni | 38,31 € | | |
| 106647RIE | Black | For plug connector | 3/2 NO | 5 | 24 V DC | Čas dobave: Predvidoma 3 - 5 dni | 36,06 € | | |
| 106648RIE | Black | Cable (30 cm) | 3/2 NO | 5 | 12 V DC | Čas dobave: Predvidoma 3 - 5 dni | 38,31 € | | |
| 106643RIE | Silver | For plug connector | 3/2 NC | 7 | 24 V DC | Čas dobave: Predvidoma 3 - 5 dni | 36,06 € | | |
| 106645RIE | Silver | For plug connector | 3/2 NC | 7 | 12 V DC | Čas dobave: Predvidoma 3 - 5 dni | 36,06 € | | |
| 106649RIE | Black | For plug connector | 3/2 NO | 5 | 12 V DC | Čas dobave: Predvidoma 3 - 5 dni | 36,06 € | | |
| 106644RIE | Silver | Cable (30 cm) | 3/2 NC | 7 | 12 V DC | Čas dobave: Predvidoma 3 - 5 dni | 38,31 € | |
Opis
3/2-way mini solenoid valve directly controlled, DN 1.5 mm, NO, 24 VDC, Cable (30 cm), Pressure 0 - 5 bar, Temp. -5 °C to 45 °C
Directly controlled 3/2-way solenoid valves specially designed for pneumatic applications. These valves are provided with a flange for assembly on an individual base or multiple manifold base. They feature a monostable manual operator. The scope of supply includes two fixing bolts and a flange gasket. The coils can be turned 180°.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -5 |
| Max. obratovalni tlak [bar] | 5 |
| Max. temperaturno območje [°C] | 45 |
| Material | Plastic |
| Tesnilo | NBR, stainless steel |
| Srednje | Filtered, unlubricated compressed air |
| Odpiranje in zapiranje krat | 10 to 12 ms (depending on pressure) |
| Moč tuljave [W] | 2.5 |
| Povezava | Cable (30 cm) |
| Napetost | 24 V DC |
| Ffunkcija | 3/2 NO |
| Ploščica na ročnem upravljalcu | Black |
| Premer [mm] | 15.0 |
| Višina [mm] | 42.0 |
| Nominalni Ø [mm] | 1.5 |
