* slike so simbolične

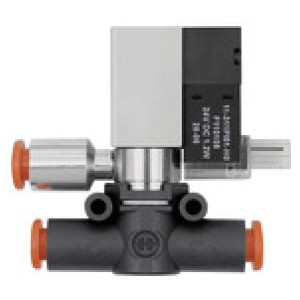

3/2-potni mag. ventil lineonline s kontroliranim izpustom NO 6
SKU: 106849RIE
EAN: 9069316
3/2-way solenoid valve »lineonline«, Controlled venting, Hose - hose, for hose Ø 6, NO, 24 V DC, Operating pre. 2.5-7 bar
Though small in size, these valves are solenoid-piloted and feature very high performance.
Each valve comes complete with a monostable manual control and LED. Exhaust can be damped with a silencer or conveyed via a pipe fitting.
Function corresponds to the normal position of the valve.
Obrestno financiranje
- 15,93 € x 6 mesecev
- 31,50 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

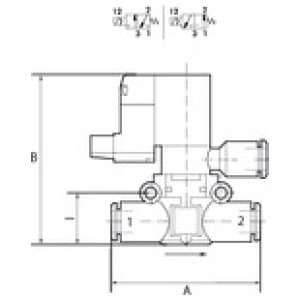

| Šifra | Ffunkcija | Za cevi Ø [mm] | I [mm] | A [mm] | B [mm] | Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 106849RIE | NO | 6 | 14.6 | 49.0 | 57.5 | 380 | Čas dobave: Predvidoma 3 - 5 dni | 86,79 € |  | |
| 106847RIE | NC | 6 | 14.6 | 49.0 | 57.5 | 380 | Čas dobave: Predvidoma 3 - 5 dni | 86,79 € | | |
| 106848RIE | NC | 8 | 18.7 | 57.2 | 63.5 | 700 | Čas dobave: Predvidoma 3 - 5 dni | 87,61 € | | |
| 106850RIE | NO | 8 | 18.7 | 57.2 | 63.5 | 700 | Čas dobave: Predvidoma 3 - 5 dni | 87,61 € | |
Opis
3/2-way solenoid valve »lineonline«, Controlled venting, Hose - hose, for hose Ø 6, NO, 24 V DC, Operating pre. 2.5-7 bar
Though small in size, these valves are solenoid-piloted and feature very high performance.
Each valve comes complete with a monostable manual control and LED. Exhaust can be damped with a silencer or conveyed via a pipe fitting.
Function corresponds to the normal position of the valve.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Min. obratovalni tlak [bar] | 2.5 |
| Max. obratovalni tlak [bar] | 7 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Telo | Technopolymer |
| Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |
| Pnevmatski simboli | On housing |
| Operativna napetost | 24 V DC |
| Vhodna moč | 1.2 W |
| Za cevi Ø [mm] | 6 |
| A [mm] | 49.0 |
| B [mm] | 57.5 |
| I [mm] | 14.6 |
| Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] | 380 |
| Ffunkcija | NO |
