* slike so simbolične

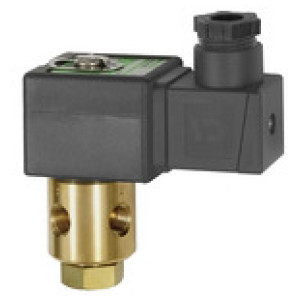

3/2-potni el.mag. ventil med., NC, direk. upr. 24 V DC
SKU: 102965RIE
EAN: 4047322160704

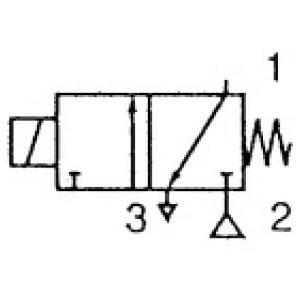

3/2-way solenoid valve brass, NC, directly operated 24 V DC, Sealing material NBR, Rp 1/8, PN 0 - 7 bar, I.D. 2.4
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Čas dobave: Predvidoma 3 - 5 dni
176,91 €
ali od 16,56 € / mesec
Izračunaj obrok
Obrestno financiranje
- 16,56 € x 12 mesecev
- 32,40 € x 6 mesecev
- 64,08 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | DN | Max. obratovalni tlak [bar] | Vrsta | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 102965RIE | Rp 1/8 | 2.4 | 7 | 7 | 30.0 | 75.0 | Čas dobave: Predvidoma 3 - 5 dni | 176,91 € |  | |
| 102966RIE | Rp 1/4 | 3.2 | 4 | 10 | 43.0 | 80.0 | Čas dobave: Predvidoma 3 - 5 dni | 223,17 € | |
Opis
3/2-way solenoid valve brass, NC, directly operated 24 V DC, Sealing material NBR, Rp 1/8, PN 0 - 7 bar, I.D. 2.4
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 7 |
| Električni priključek | For Pg 11P connector socket acc. to ISO 4400 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | NBR |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 75 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 90 |
| Navoj | Rp 1/8 |
| Vrsta | 7 |
| Ffunkcija | normally closed (NC) |
| Standardni navoj | Rp thread acc. to ISO 7-1 |
| DN | 2.4 |
| A [mm] | 75.0 |
| B [mm] | 30.0 |
