* slike so simbolične
3/2 pot.vent. Blue serija, Vtični prik., cev zunanja Ø 12
SKU: 110159RIE
EAN: 4047322379717

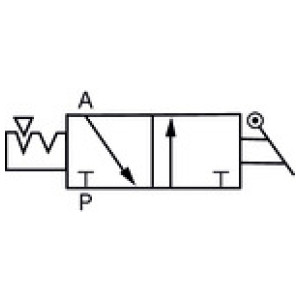

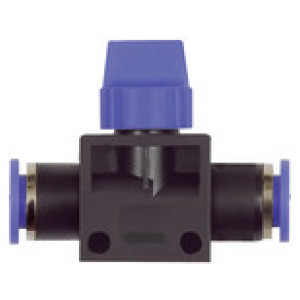

3/2-way valve »Blue Series«, Plug connector, for hose exterior Ø 12 mm, pmin 1.5 bar, pmax temp. 15 bar, Plastic / NPBPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
18,64 €

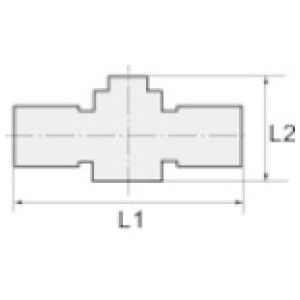

Šifra | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|
110158RIE | 10 | 46.0 | 63.7 | Čas dobave: Predvidoma 3 - 5 dni | 16,41 € | | |
110157RIE | 8 | 41.5 | 52.6 | Čas dobave: Predvidoma 3 - 5 dni | 14,25 € | | |
110159RIE | 12 | 46.0 | 64.1 | Čas dobave: Predvidoma 3 - 5 dni | 18,64 € | | |
110156RIE | 6 | 41.5 | 51.6 | Čas dobave: Predvidoma 3 - 5 dni | 13,38 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
Serija | Blue series |
Max. working pressure short term [bar] | 15 |
Min. delovni tlak [bar] | 1.5 |
Max. delovni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 80 |
Min. temperaturno območje [°C] | -20 |
Tesnilo | NBR |
Srednje | Compressed air, neutral and safe gases and liquids |
Priporočena cev | PU or PA (nylon) |
Rokav | Plastic |
Za cevi O.D. [mm] | 12 |
L1 [mm] | 64.1 |
L2 [mm] | 46.0 |
Material | Plastic and nickel-plated brass |
