* slike so simbolične

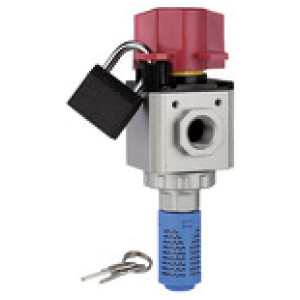

3/2 blokirni ventil »G-mali«, Velikost 200, G 1/8
SKU: 116431RIE
EAN: 4047322309004

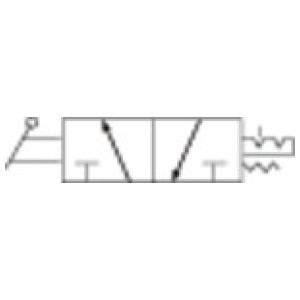

3/2-way blocking valve »G-mini« mounting bracket, Padlock and silencer, Manually actuated, Size 200, G 1/8, Input pressure 0-9 bar
Rotary switch can be turned 90°, lockable.
The valve is used to switch off the air supply and is normally installed upstream of a pressure regulator, filter regulator or service unit.
When the valve is closed, the residual air on the P2 side is discharged into the atmosphere through the relief port on the bottom.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 116431RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 35,06 € |  | |
| 116432RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 35,06 € | |
Opis
3/2-way blocking valve »G-mini« mounting bracket, Padlock and silencer, Manually actuated, Size 200, G 1/8, Input pressure 0-9 bar
Rotary switch can be turned 90°, lockable.
The valve is used to switch off the air supply and is normally installed upstream of a pressure regulator, filter regulator or service unit.
When the valve is closed, the residual air on the P2 side is discharged into the atmosphere through the relief port on the bottom.
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Max. vhodni tlak [bar] | 9 |
| Velikost | 200 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 70 |
| Max. sobna temperatura [°C] | 70 |
| Zasučni gumb | Plastics |
| Pretok [l/min] | 1750 |
| Odzračevalni vtič | G 1/4 |

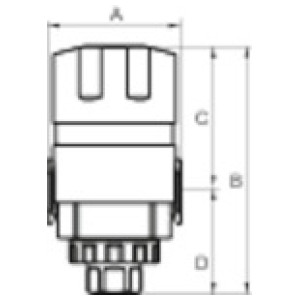

| A [mm] | 38.0 |
| B [mm] | 89.0 |
| C [mm] | 52.5 |
| D [mm] | 36.5 |
| Serija | G-mini |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
