* slike so simbolične

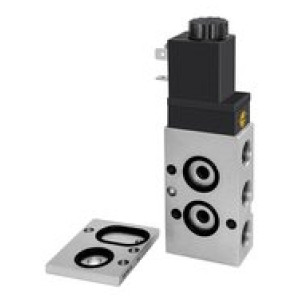

3/2-5/2-potni ventil, NAMUR, povratna vzmet, G 1/4, 24 V DC
SKU: 103656RIE
EAN: 4047322288279
3/2-5/2-way valve, NAMUR, Spring return, Operating temp. -20 °C to 50 °C, Working pressure 2.5 - 10 bar, Connection G 1/4, 24 V DC

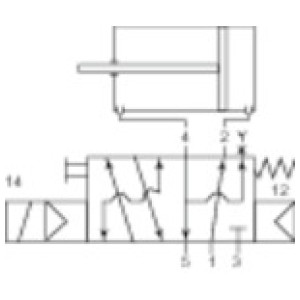

Pilot-operated 3/2- and 5/2-way spool valves with threaded ports and a NAMUR style interface with air purging function.
By adding the conversion plate supplied with each valve, the device can be adapted to 3/2-way function.
Obrestno financiranje
- 15,74 € x 6 mesecev
- 31,13 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Napetost | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 103655RIE | 230 V, 50 Hz | Čas dobave: Predvidoma 3 - 5 dni | 85,75 € |  | |
| 103656RIE | 24 V DC | Čas dobave: Predvidoma 3 - 5 dni | 85,75 € | |
Opis
3/2-5/2-way valve, NAMUR, Spring return, Operating temp. -20 °C to 50 °C, Working pressure 2.5 - 10 bar, Connection G 1/4, 24 V DC
Pilot-operated 3/2- and 5/2-way spool valves with threaded ports and a NAMUR style interface with air purging function.
By adding the conversion plate supplied with each valve, the device can be adapted to 3/2-way function.
Tehnični podatki in specifikacije
| Povezava | G 1/4 (Port 1), G 1/4 (Port 3 and 5) |
| Min. delovni tlak [bar] | 2.5 |
| Max. delovni tlak [bar] | 10 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 50 |
| Ohišje | Aluminium anodised |
| Ročno upravljanje | latching |
| DN | 7 |
| Napetost | 24 V DC |
| Pretok [l/min] | 1250 |
| Tesnilo | NBR |
| Srednje | Air, neutral gases (filtered) |
| Električni priključek | Connector socket Pg 9 |
| Vhodna moč | 3 W=/ 5 VA~ |
| Tuljava | Stainless steel |
| Obseg dobave | Plug connector PG 9, conversion plate, screws and seal |
