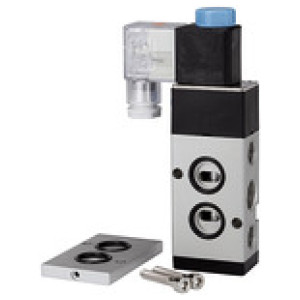

3/2-5/2-potni ventil, NAMUR, G 1/4 (1), G 1/4 (3 + 5), 24 V DC slika

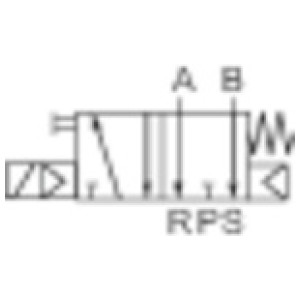

3/2-5/2-potni ventil, NAMUR, G 1/4 (1), G 1/4 (3 + 5), 24 V DC slika

* slike so simbolične

3/2-5/2-potni ventil, NAMUR, G 1/4 (1), G 1/4 (3 + 5), 24 V DC

SKU: 103650RIE
EAN: 4047322268837

3/2-5/2-way valve NAMUR, Alu, Temp. -5 °C to 50 °C, Working pressure 1.5 - 8 bar, Connection G 1/4 (1), G 1/4 (3 + 5), 24 V DC

Pilot-operated 3/2 and 5/2-way spool valves with threaded ports and a NAMUR style interface.

Combines high-quality design with a low price.

By adding the conversion plate supplied with each valve, the device can be adapted to a 3/2-way function.

The valve is turned on by a continuous signal. Turning off causes the piston to be returned to its initial position under pressure.

Includes a manual operator as standard.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Port 1 DN Napetost Pretok [l/min] Zaloga Cena Nakup Natisni
103651RIE G 3/8 10 230 V, 50 Hz 1650
Čas dobave: Predvidoma 3 - 5 dni
67,56 € Natisni
103652RIE G 3/8 10 24 V DC 1650
Čas dobave: Predvidoma 3 - 5 dni
67,56 € Natisni
130277RIE G 1/4 8 230 V, 50 Hz 1370
Čas dobave: Predvidoma 3 - 5 dni
53,08 € Natisni
103649RIE G 1/4 8 230 V, 50 Hz 1370
Čas dobave: Predvidoma 3 - 5 dni
? Povpraševanje Natisni
103650RIE G 1/4 8 24 V DC 1370
Čas dobave: Predvidoma 3 - 5 dni
? Povpraševanje Natisni
130278RIE G 1/4 8 24 V DC 1370
Čas dobave: Predvidoma 3 - 5 dni
53,08 € Natisni

Opis

3/2-5/2-way valve NAMUR, Alu, Temp. -5 °C to 50 °C, Working pressure 1.5 - 8 bar, Connection G 1/4 (1), G 1/4 (3 + 5), 24 V DC

Pilot-operated 3/2 and 5/2-way spool valves with threaded ports and a NAMUR style interface.

Combines high-quality design with a low price.

By adding the conversion plate supplied with each valve, the device can be adapted to a 3/2-way function.

The valve is turned on by a continuous signal. Turning off causes the piston to be returned to its initial position under pressure.

Includes a manual operator as standard.

Tehnični podatki in specifikacije

Min. delovni tlak [bar] 1.5
Max. delovni tlak [bar] 8
Min. delovna temperatura [°C] -5
Max. delovna temperatura [°C] 50
Port 1 G 1/4
Port 3 G 1/4
Port 5 G 1/4
Ohišje Aluminium
Ročno upravljanje latching/non-latching
DN 8
Napetost 24 V DC
Pretok [l/min] 1370
Tesnilo NBR
Srednje Air, neutral gases (filtered)
Električni priključek Connector socket PG 9 with LED display
