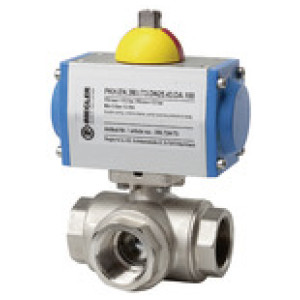

3-potni med. krog. ventil, Pneuma. vklop, T-izpust, 1 1/2
SKU: 103562RIE
EAN: 4047322077262
3-way brass ball valve, Pneumat. actuation drive, T-hole, Operating temperature -20°C to 70°C, Rp 1 1/2, DN 40, PN max. 25 bar
3-way cock, L-bore or T-bore, full bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Čas dobave: Predvidoma 3 - 5 dni
1.022,77 €
ali od 27,24 € / mesec
Izračunaj obrok
Obrestno financiranje
- 100 € + 27,24 € x 48 mesecev
- 100 € + 34,81 € x 36 mesecev
- 100 € + 50,01 € x 24 mesecev
- 100 € + 95,73 € x 12 mesecev
- 100 € + 187,26 € x 6 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

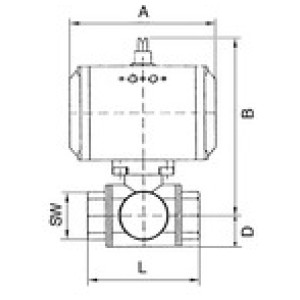

| Šifra | Navoj | PN [bar] | DN | D [mm] | a/f [mm] | L [mm] | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103562RIE | Rp 1 1/2 | 25 | 40 | 43.0 | 55 | 133.0 | 180.0 | 193.5 | Čas dobave: Predvidoma 3 - 5 dni | 1.022,77 € |  | |
| 159744RIE | Rp 1/2 | 40 | 15 | 20.0 | 25 | 64.5 | 133.0 | 142.0 | Čas dobave: Predvidoma 3 - 5 dni | 339,51 € | | |
| 159745RIE | Rp 1 | 40 | 25 | 30.0 | 41 | 97.0 | 133.0 | 150.5 | Čas dobave: Predvidoma 3 - 5 dni | 591,19 € | | |
| 103563RIE | Rp 2 | 25 | 50 | 56.0 | 67 | 157.0 | 209.0 | 221.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.366,30 € | | |
| 103561RIE | Rp 1 1/4 | 40 | 32 | 37.0 | 55 | 118.0 | 161.0 | 191.5 | Čas dobave: Predvidoma 3 - 5 dni | 609,40 € | | |
| 103559RIE | Rp 3/4 | 40 | 20 | 24.0 | 31 | 76.0 | 133.0 | 146.0 | Čas dobave: Predvidoma 3 - 5 dni | 437,66 € | |
Opis
3-way brass ball valve, Pneumat. actuation drive, T-hole, Operating temperature -20°C to 70°C, Rp 1 1/2, DN 40, PN max. 25 bar
3-way cock, L-bore or T-bore, full bore.
Pneumatic actuators, double- or single acting version and integrated end-position feedback.
Tehnični podatki in specifikacije
| Pogonski material | Anodised aluminium |
| Max. vodeni tlak aktuatorja [bar] | 10 |
| Priporočeni vodeni tlak [bar] | 5.5 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 70 |
| Material krogelnega ventila | Nickel-plated brass, with ISO flange plate |
| Premaz za krogelni ventil | PTFE / FKM |
| Premaz za pogon | NBR |
| Max. vodeni tlak [bar] | 5.5 |
| Kot vrtenja [°] | 90 |
| Adapter ventila | Supplied as standard |
| Navoj | Rp 1 1/2 |
| DN | 40 |
| Različica | double-acting |
| Položaj | T 3 |
| B [mm] | 193.5 |
| L [mm] | 133.0 |
| A [mm] | 180.0 |
| D [mm] | 43.0 |
| a/f [mm] | 55 |
| PN [bar] | 25 |
