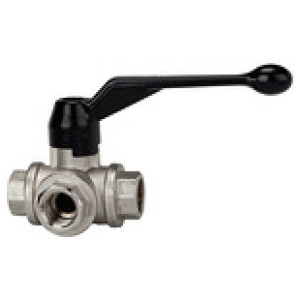

3-potni krogelni ventil, T-izpust, lahka izvedba, Rp 1 1/2
SKU: 103373RIE
EAN: 4047322275866
3-way ball valve, T-hole, standard type, nickel-plated brass, Medium/ambient temp. -15 °C to 100 °C, Rp 1 1/2, PN max. 16 bar
Sealing on all sides with T-bore.
The lever of this model can only be turned 90° rather than 360°.
Only two valve positions are therefore possible instead of four.
![leanpay logo](https://www.karcher-trg.si/templates/default/images/brands/leanpay.png)
Obrestno financiranje
- 10,85 € x 24 mesecev
- 20,77 € x 12 mesecev
- 40,64 € x 6 mesecev
- 80,37 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

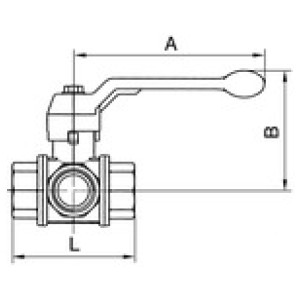

Šifra | Navoj | Bore inball | DN | Max. obratovalni tlak pri 20 ° C [bar] | E [mm] | C Ø [mm] | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
103371RIE | Rp 1 | 23 | 25 | 25 | 31.0 | 58.0 | 102.0 | 113.0 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 112,76 € | | |
103369RIE | Rp 1/2 | 13 | 15 | 40 | 21.0 | 38.0 | 85.0 | 80.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 62,98 € | | |
103370RIE | Rp 3/4 | 18 | 20 | 40 | 26.0 | 48.0 | 98.0 | 96.0 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 81,57 € | | |
103372RIE | Rp 1 1/4 | 29 | 32 | 16 | 34.0 | 67.0 | 121.0 | 130.0 | 195.0 | Čas dobave: Predvidoma 3 - 5 dni | 164,46 € | | |
103374RIE | Rp 2 | 44 | 50 | 16 | 47.0 | 95.0 | 141.0 | 169.0 | 235.0 | Čas dobave: Predvidoma 3 - 5 dni | 297,91 € | | |
103373RIE | Rp 1 1/2 | 35 | 40 | 16 | 40.0 | 78.0 | 125.0 | 147.0 | 195.0 | Čas dobave: Predvidoma 3 - 5 dni | 221,60 € | |
Opis
3-way ball valve, T-hole, standard type, nickel-plated brass, Medium/ambient temp. -15 °C to 100 °C, Rp 1 1/2, PN max. 16 bar
Sealing on all sides with T-bore.
The lever of this model can only be turned 90° rather than 360°.
Only two valve positions are therefore possible instead of four.
Tehnični podatki in specifikacije
Ohišje | Nickel-plated brass |
Tesnilo | PTFE |
Min. temperatura medija [°C] | -15 |
Max. temperatura medija [°C] | 100 |
Min. sobna temperatura [°C] | -15 |
Max. sobna temperatura [°C] | 100 |
Material navojev | Nickel-plated brass |
Krogla | Nickel-plated brass |
Ročica | Aluminium, painted black |
Vzmet | Stainless steel |
Navoj | Rp 1 1/2 |
DN | 40 |
Standardni navoj | Rp thread acc. to ISO 7-1 |
Bore inball | 35 |
Max. obratovalni tlak pri 20 ° C [bar] | 16 |
A [mm] | 195.0 |
B [mm] | 125.0 |
L [mm] | 147.0 |
E [mm] | 40.0 |
C Ø [mm] | 78.0 |
