3-pot. krog. ventil, L-izpust, nikljana med., 3/4, DN 20
SKU: 103386RIE
EAN: 4047322013154

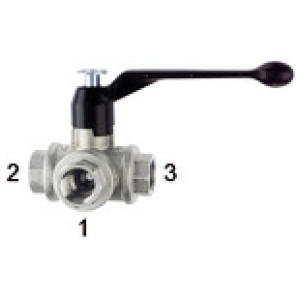

3-way ball valve, L-hole, nickel-plated brass, Medium / ambient temp. -15 °C to 100 °C, Rp 3/4, DN 20, PN max. 40 bar
The medium can enter via any of the ports to allow several switching variants.
3-way ball valves for diverting media.
Čas dobave: Predvidoma 3 - 5 dni
113,18 €
ali od 10,57 € / mesec
Izračunaj obrok
Obrestno financiranje
- 10,57 € x 12 mesecev
- 20,69 € x 6 mesecev
- 40,91 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

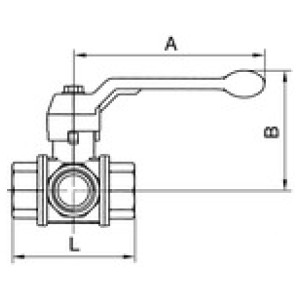

| Šifra | Navoj | Max. obratovalni tlak pri 20 ° C [bar] | Bore inball | DN | E [mm] | C Ø [mm] | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 103388RIE | Rp 1 1/4 | 16 | 29 | 32 | 34.0 | 67.0 | 121.0 | 130.0 | 195.0 | Čas dobave: Predvidoma 3 - 5 dni | 217,86 € |  | |
| 103390RIE | Rp 2 | 16 | 44 | 50 | 47.0 | 95.0 | 141.0 | 169.0 | 235.0 | Čas dobave: Predvidoma 3 - 5 dni | 390,22 € | | |
| 103387RIE | Rp 1 | 25 | 23 | 25 | 31.0 | 58.0 | 102.0 | 113.0 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 160,34 € | | |
| 103384RIE | Rp 3/8 | 40 | 13 | 10 | 21.0 | 38.0 | 85.0 | 71.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 94,29 € | | |
| 103385RIE | Rp 1/2 | 40 | 13 | 15 | 21.0 | 38.0 | 85.0 | 80.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 94,29 € | | |
| 103386RIE | Rp 3/4 | 40 | 18 | 20 | 26.0 | 48.0 | 98.0 | 96.0 | 160.0 | Čas dobave: Predvidoma 3 - 5 dni | 113,18 € | | |
| 103383RIE | Rp 1/4 | 40 | 10 | 8 | 21.0 | 38.0 | 85.0 | 71.0 | 130.0 | Čas dobave: Predvidoma 3 - 5 dni | 94,29 € | | |
| 103389RIE | Rp 1 1/2 | 16 | 35 | 40 | 40.0 | 78.0 | 125.0 | 147.0 | 195.0 | Čas dobave: Predvidoma 3 - 5 dni | 289,07 € | |
Opis
3-way ball valve, L-hole, nickel-plated brass, Medium / ambient temp. -15 °C to 100 °C, Rp 3/4, DN 20, PN max. 40 bar
The medium can enter via any of the ports to allow several switching variants.
3-way ball valves for diverting media.
Tehnični podatki in specifikacije
| Ohišje | Nickel-plated brass |
| Tesnilo | PTFE / FKM |
| Min. temperatura medija [°C] | -15 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -15 |
| Max. sobna temperatura [°C] | 100 |
| Material navojev | Bright brass |
| Krogla | Bright brass |
| Ročica | Aluminium, painted black |
| Vzmet | Stainless steel |
| Indikator položaja | Galvanised steel |
| Navoj | Rp 3/4 |
| DN | 20 |
| Standardni navoj | Rp thread acc. to ISO 7-1 |
| Bore inball | 18 |
| Max. obratovalni tlak pri 20 ° C [bar] | 40 |
| A [mm] | 160.0 |
| B [mm] | 98.0 |
| L [mm] | 96.0 |
| E [mm] | 26.0 |
| C Ø [mm] | 48.0 |
