* slike so simbolične

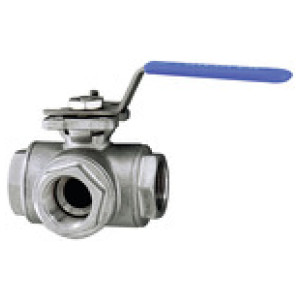

3-pot. krog. ventil, L-izpust, ner.jeklo 1.4408, G 3/8, DN 10
SKU: 103464RIE
EAN: 4047322012737
3-way ball valve, L-hole, Stainless steel 1.4408, Operating temperature max. 160 °C, G 3/8, DN 10, PN max. 63 bar
With L or T-bore, reduced bore.
Version for sealing on all sides with integrated ISO flange plate (ISO 5211).
The lever can be turned 360° to allow several switching variants.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
3-pot. krog. ventil, L-izpust, ner.jeklo 1.4408, G 3/8, DN 10
Material: Stainless steel 1.4408
Navoj: G 3/8
Ročica: Stainless steel
Standardni navoj: G thread acc. to DIN EN ISO 228-1
A [mm]: 114.0
Navoj: G 3/8
Ročica: Stainless steel
Standardni navoj: G thread acc. to DIN EN ISO 228-1
A [mm]: 114.0

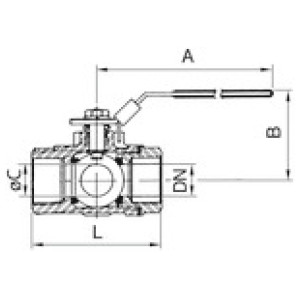

| Šifra | Navoj | DN | C Ø [mm] | B [mm] | L [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 103464RIE | G 3/8 | 10 | 11.0 | 73.0 | 80.0 | 114.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 103467RIE | G 1 | 25 | 20.0 | 83.0 | 100.0 | 133.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 103465RIE | G 1/2 | 15 | 12.5 | 73.0 | 80.0 | 114.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 103470RIE | G 2 | 50 | 38.1 | 126.0 | 170.0 | 187.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 103463RIE | G 1/4 | 8 | 11.0 | 73.0 | 80.0 | 114.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 103468RIE | G 1 1/4 | 32 | 25.0 | 92.0 | 123.0 | 187.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
| 103469RIE | G 1 1/2 | 40 | 31.8 | 98.0 | 142.0 | 187.0 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
3-way ball valve, L-hole, Stainless steel 1.4408, Operating temperature max. 160 °C, G 3/8, DN 10, PN max. 63 bar
With L or T-bore, reduced bore.
Version for sealing on all sides with integrated ISO flange plate (ISO 5211).
The lever can be turned 360° to allow several switching variants.
Tehnični podatki in specifikacije
| Tesnilo | RTFE |
| Max. obratovalni tlak [bar] | 63 |
| Material | Stainless steel 1.4408 |
| Ročica | Stainless steel |
| Max. delovna temperatura [°C] | 160 |
| Navoj | G 3/8 |
| DN | 10 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| A [mm] | 114.0 |
| B [mm] | 73.0 |
| L [mm] | 80.0 |
| C Ø [mm] | 11.0 |
