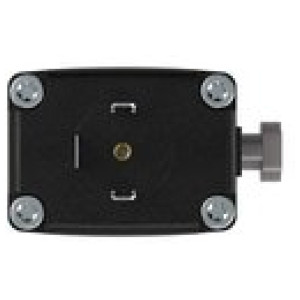

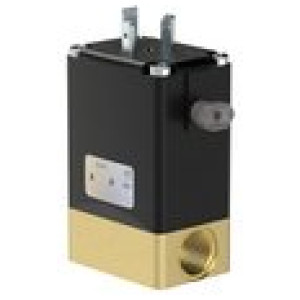

2/2-way solenoid valve, NO, G 1/4, PN 0-10, FPM, 230V AC
SKU: 125791RIE
EAN: 4047322726818
Media-separated 2/2-way solenoid valve, NO, brass, G 1/4, PN 0-10, direct. opera., 230V AC, Med.temp. 0 to 80, Amb.temp. 0 to 55
Media-separated solenoid valves are an important component in the control of fluids in systems. With these direct or pilot operated values only the fluid housing and the separating diaphragm come into contact with the medium.
Thus, these valves can withstand many different media (see resistance chart). In addition, the brass housing meets all the conventional potable water requirements. The direct controlled valve in the 3/2-way design can be used either as a mixing valve or for any desired flow direction.
The pilot operated valve is normally closed in the basic position. By simply turning the 3/2-way pilot valve, the basic position can be changed to normally open.
Povpraševanje

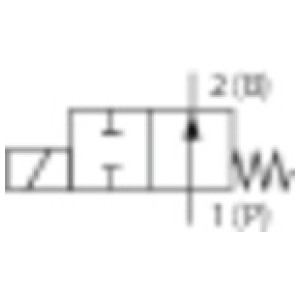

Ffunkcija: normally open (NO)
IP zaščita: IP65 (with connector socket fitted)
Navoj: G 1/4
Notranji deli: Brass
Ohišje: Brass
Sedež ventila: Brass
Napetost: 230V AC
| Šifra | Tesnilo | DN | Max. obratovalni tlak [bar] | Max. temperatura medija [°C] | Napetost | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 125785RIE | FPM | 3 | 10 | 90 | 110V AC | Ni na zalogi | ? | Povpraševanje |  |
| 125797RIE | FPM | 4 | 5 | 90 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 125787RIE | NBR | 3 | 10 | 80 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 125798RIE | NBR | 3 | 10 | 80 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 125795RIE | FPM | 3 | 10 | 90 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 125792RIE | FPM | 4 | 5 | 90 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 125794RIE | NBR | 4 | 5 | 80 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 125786RIE | FPM | 4 | 5 | 90 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 125793RIE | NBR | 3 | 10 | 80 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 125791RIE | FPM | 3 | 10 | 90 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
Opis
Media-separated 2/2-way solenoid valve, NO, brass, G 1/4, PN 0-10, direct. opera., 230V AC, Med.temp. 0 to 80, Amb.temp. 0 to 55
Media-separated solenoid valves are an important component in the control of fluids in systems. With these direct or pilot operated values only the fluid housing and the separating diaphragm come into contact with the medium.
Thus, these valves can withstand many different media (see resistance chart). In addition, the brass housing meets all the conventional potable water requirements. The direct controlled valve in the 3/2-way design can be used either as a mixing valve or for any desired flow direction.
The pilot operated valve is normally closed in the basic position. By simply turning the 3/2-way pilot valve, the basic position can be changed to normally open.
Tehnični podatki in specifikacije
| IP zaščita | IP65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 10 |
| Električni priključek | Pin terminal acc. to DIN EN 175301-803 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Brass |
| Tesnilo | FPM |
| Max. sobna temperatura [°C] | 55 |
| Max. temperatura medija [°C] | 90 |
| Navoj | G 1/4 |
| Ffunkcija | normally open (NO) |
| DN | 3 |

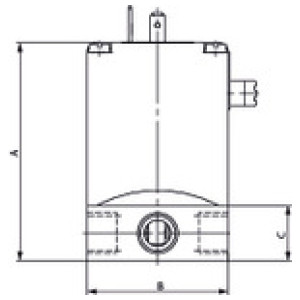

| A [mm] | 71.0 |
| B [mm] | 46.0 |
| Napetost | 230V AC |
| C [mm] | 18.0 |
