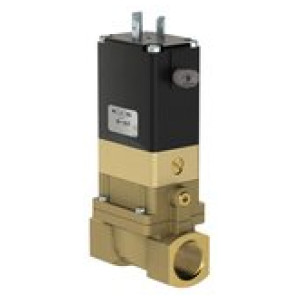

2/2-way solenoid valve, NC, G 3/4, PN 0.2-10, NBR, 24V DC  slika

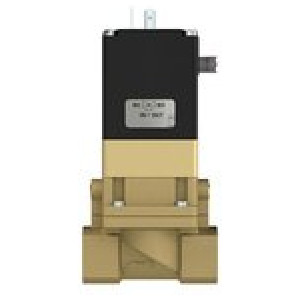

 2/2-way solenoid valve, NC, G 3/4, PN 0.2-10, NBR, 24V DC  slika
 2/2-way solenoid valve, NC, G 3/4, PN 0.2-10, NBR, 24V DC  slika

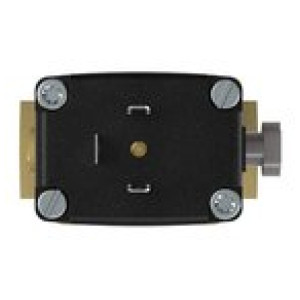

 2/2-way solenoid valve, NC, G 3/4, PN 0.2-10, NBR, 24V DC  slika
 2/2-way solenoid valve, NC, G 3/4, PN 0.2-10, NBR, 24V DC  slika

* slike so simbolične

2/2-way solenoid valve, NC, G 3/4, PN 0.2-10, NBR, 24V DC

SKU: 125784RIE
EAN: 4047322726740

Media-separated 2/2-way solenoid valve, NC, brass, G 3/4, PN 0.2-10, pilot-opera., 24V DC, Med.temp. 0 to 80, Amb.temp. 0 to 55

Media-separated solenoid valves are an important component in the control of fluids in systems. With these direct or pilot operated values only the fluid housing and the separating diaphragm come into contact with the medium.

Thus, these valves can withstand many different media (see resistance chart). In addition, the brass housing meets all the conventional potable water requirements. The direct controlled valve in the 3/2-way design can be used either as a mixing valve or for any desired flow direction.
The pilot operated valve is normally closed in the basic position. By simply turning the 3/2-way pilot valve, the basic position can be changed to normally open.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Navoj Tesnilo DN Max. temperatura medija [°C] C [mm] A [mm] B [mm] Zaloga Cena Nakup Natisni
125769RIE G 2 NBR 50 80 142.5 164.0 177.5
Ni na zalogi
? Povpraševanje Natisni
125775RIE G 2 1/2 FPM 65 90 142.5 180.0 185.0
Ni na zalogi
? Povpraševanje Natisni
125768RIE G 2 FPM 50 90 142.5 164.0 177.5
Ni na zalogi
? Povpraševanje Natisni
125783RIE G 3/4 FPM 20 90 115.0 100.0 131.0
Ni na zalogi
? Povpraševanje Natisni
124747RIE G 1 FPM 25 90 121.5 115.0 142.0
Ni na zalogi
? Povpraševanje Natisni
124748RIE G 1 NBR 25 80 121.5 115.0 142.0
Ni na zalogi
? Povpraševanje Natisni
124755RIE G 1 1/2 FPM 40 90 126.0 126.0 156.0
Ni na zalogi
? Povpraševanje Natisni
125771RIE G 2 1/2 NBR 65 80 142.5 180.0 185.0
Ni na zalogi
? Povpraševanje Natisni
124850RIE G 1 1/4 FPM 32 90 122.0 126.0 147.0
Ni na zalogi
? Povpraševanje Natisni
124888RIE G 1/2 NBR 13 80 109.0 65.0 123.0
Ni na zalogi
? Povpraševanje Natisni
125784RIE G 3/4 NBR 20 80 115.0 100.0 131.0
Ni na zalogi
? Povpraševanje Natisni
124892RIE G 1/2 FPM 13 90 109.0 65.0 123.0
Ni na zalogi
? Povpraševanje Natisni
124851RIE G 1 1/4 NBR 32 80 122.0 126.0 147.0
Ni na zalogi
? Povpraševanje Natisni
124756RIE G 1 1/2 NBR 40 80 126.0 126.0 156.0
Ni na zalogi
? Povpraševanje Natisni

Opis

Media-separated 2/2-way solenoid valve, NC, brass, G 3/4, PN 0.2-10, pilot-opera., 24V DC, Med.temp. 0 to 80, Amb.temp. 0 to 55

Media-separated solenoid valves are an important component in the control of fluids in systems. With these direct or pilot operated values only the fluid housing and the separating diaphragm come into contact with the medium.

Thus, these valves can withstand many different media (see resistance chart). In addition, the brass housing meets all the conventional potable water requirements. The direct controlled valve in the 3/2-way design can be used either as a mixing valve or for any desired flow direction.
The pilot operated valve is normally closed in the basic position. By simply turning the 3/2-way pilot valve, the basic position can be changed to normally open.

Tehnični podatki in specifikacije

IP zaščita IP65 (with connector socket fitted)
Min. obratovalni tlak [bar] 0.2
Max. obratovalni tlak [bar] 10
Električni priključek Pin terminal acc. to DIN EN 175301-803
Ohišje Brass
Sedež ventila Brass and stainless steel
Notranji deli Brass and stainless steel
Tesnilo NBR
Max. sobna temperatura [°C] 55
Max. temperatura medija [°C] 80
Navoj G 3/4
Ffunkcija normally closed (NC)
DN 20

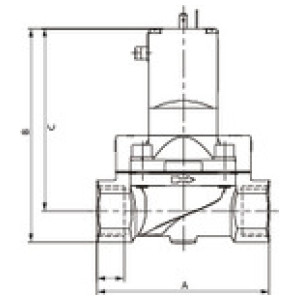

A [mm] 100.0
B [mm] 131.0
Napetost 24V DC
C [mm] 115.0
