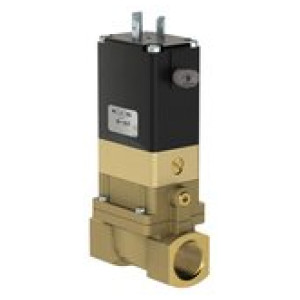

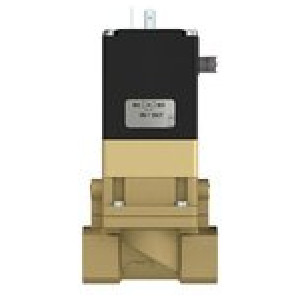

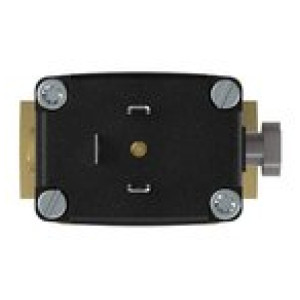

2/2-way solenoid valve, NC, G 112, PN 0.2-10, NBR, 110V AC
SKU: 124750RIE
EAN: 4047322726092
Media-separated 2/2-way solenoid valve, NC, brass, G 11/2, PN 0.2-10, pilot-opera., 110V AC, Med.temp. 0 to 80, Amb.temp. 0 to 55
Media-separated solenoid valves are an important component in the control of fluids in systems. With these direct or pilot operated values only the fluid housing and the separating diaphragm come into contact with the medium.
Thus, these valves can withstand many different media (see resistance chart). In addition, the brass housing meets all the conventional potable water requirements. The direct controlled valve in the 3/2-way design can be used either as a mixing valve or for any desired flow direction.
The pilot operated valve is normally closed in the basic position. By simply turning the 3/2-way pilot valve, the basic position can be changed to normally open.
Povpraševanje
Ffunkcija: normally closed (NC)
IP zaščita: IP65 (with connector socket fitted)
Navoj: G 1 1/2
Notranji deli: Brass and stainless steel
Ohišje: Brass
Sedež ventila: Brass and stainless steel
Napetost: 110V AC

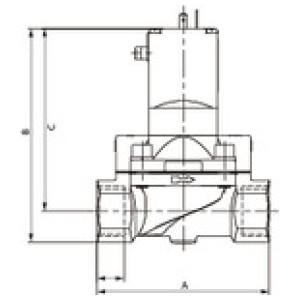

A [mm]: 126.0
C [mm]: 126.0
B [mm]: 156.0
| Šifra | Navoj | Tesnilo | DN | Max. temperatura medija [°C] | A [mm] | C [mm] | B [mm] | Napetost | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 124741RIE | G 1 | NBR | 25 | 80 | 115.0 | 121.5 | 142.0 | 230V AC | Ni na zalogi | ? | Povpraševanje |  |
| 124749RIE | G 1 1/2 | FPM | 40 | 90 | 126.0 | 126.0 | 156.0 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 125763RIE | G 2 | NBR | 50 | 80 | 164.0 | 142.5 | 177.5 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 125780RIE | G 3/4 | NBR | 20 | 80 | 100.0 | 115.0 | 131.0 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 125766RIE | G 2 | FPM | 50 | 90 | 164.0 | 142.5 | 177.5 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 125773RIE | G 2 1/2 | NBR | 65 | 80 | 180.0 | 142.5 | 185.0 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 125779RIE | G 3/4 | FPM | 20 | 90 | 100.0 | 115.0 | 131.0 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 124742RIE | G 1 | FPM | 25 | 90 | 115.0 | 109.0 | 142.0 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 124760RIE | G 1 1/4 | NBR | 32 | 80 | 126.0 | 122.0 | 147.0 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 125774RIE | G 2 1/2 | NBR | 65 | 80 | 180.0 | 142.5 | 185.0 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 125772RIE | G 2 1/2 | FPM | 65 | 90 | 180.0 | 142.5 | 185.0 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 124852RIE | G 1/2 | FPM | 13 | 90 | 65.0 | 109.0 | 123.0 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 124842RIE | G 1 1/4 | FPM | 32 | 90 | 126.0 | 122.0 | 147.0 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 124887RIE | G 1/2 | NBR | 13 | 80 | 65.0 | 109.0 | 123.0 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 124740RIE | G 1 | FPM | 25 | 90 | 115.0 | 121.5 | 142.0 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 125770RIE | G 2 1/2 | FPM | 65 | 90 | 180.0 | 142.5 | 185.0 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 125765RIE | G 2 | NBR | 50 | 80 | 164.0 | 142.5 | 177.5 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 125782RIE | G 3/4 | NBR | 20 | 80 | 100.0 | 115.0 | 131.0 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 125778RIE | G 3/4 | NBR | 20 | 80 | 100.0 | 115.0 | 131.0 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 124754RIE | G 1 1/2 | NBR | 40 | 80 | 126.0 | 126.0 | 156.0 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 124853RIE | G 1/2 | FPM | 13 | 90 | 65.0 | 109.0 | 123.0 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 124757RIE | G 1 1/4 | FPM | 32 | 90 | 126.0 | 122.0 | 147.0 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 124758RIE | G 1 1/4 | NBR | 32 | 80 | 126.0 | 122.0 | 147.0 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 124843RIE | G 1 1/4 | NBR | 32 | 80 | 126.0 | 122.0 | 147.0 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 124752RIE | G 1 1/2 | NBR | 40 | 80 | 126.0 | 126.0 | 156.0 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 124891RIE | G 1/2 | NBR | 13 | 80 | 65.0 | 109.0 | 123.0 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 124889RIE | G 1/2 | NBR | 13 | 80 | 65.0 | 109.0 | 123.0 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 124750RIE | G 1 1/2 | NBR | 40 | 80 | 126.0 | 126.0 | 156.0 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 124886RIE | G 1/2 | FPM | 13 | 90 | 65.0 | 109.0 | 123.0 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 125781RIE | G 3/4 | FPM | 20 | 90 | 100.0 | 115.0 | 131.0 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 125767RIE | G 2 | NBR | 50 | 80 | 164.0 | 142.5 | 177.5 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 125776RIE | G 2 1/2 | NBR | 65 | 80 | 180.0 | 142.5 | 185.0 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 124705RIE | G 1 | FPM | 25 | 90 | 115.0 | 109.0 | 142.0 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 124753RIE | G 1 1/2 | FPM | 40 | 90 | 126.0 | 126.0 | 156.0 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 124743RIE | G 1 | NBR | 25 | 80 | 115.0 | 109.0 | 142.0 | 24V AC | Ni na zalogi | ? | Povpraševanje | |
| 124751RIE | G 1 1/2 | FPM | 40 | 90 | 126.0 | 126.0 | 156.0 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 124739RIE | G 1 | NBR | 25 | 80 | 115.0 | 109.0 | 142.0 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 124759RIE | G 1 1/4 | FPM | 32 | 90 | 126.0 | 122.0 | 147.0 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 125762RIE | G 2 | FPM | 50 | 90 | 164.0 | 142.5 | 177.5 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
| 125764RIE | G 2 | FPM | 50 | 90 | 164.0 | 142.5 | 177.5 | 230V AC | Ni na zalogi | ? | Povpraševanje | |
| 125777RIE | G 3/4 | FPM | 20 | 90 | 100.0 | 115.0 | 131.0 | 110V AC | Ni na zalogi | ? | Povpraševanje | |
Opis
Media-separated 2/2-way solenoid valve, NC, brass, G 11/2, PN 0.2-10, pilot-opera., 110V AC, Med.temp. 0 to 80, Amb.temp. 0 to 55
Media-separated solenoid valves are an important component in the control of fluids in systems. With these direct or pilot operated values only the fluid housing and the separating diaphragm come into contact with the medium.
Thus, these valves can withstand many different media (see resistance chart). In addition, the brass housing meets all the conventional potable water requirements. The direct controlled valve in the 3/2-way design can be used either as a mixing valve or for any desired flow direction.
The pilot operated valve is normally closed in the basic position. By simply turning the 3/2-way pilot valve, the basic position can be changed to normally open.
Tehnični podatki in specifikacije
| IP zaščita | IP65 (with connector socket fitted) |
| Min. obratovalni tlak [bar] | 0.2 |
| Max. obratovalni tlak [bar] | 10 |
| Električni priključek | Pin terminal acc. to DIN EN 175301-803 |
| Ohišje | Brass |
| Sedež ventila | Brass and stainless steel |
| Notranji deli | Brass and stainless steel |
| Tesnilo | NBR |
| Max. sobna temperatura [°C] | 55 |
| Max. temperatura medija [°C] | 80 |
| Navoj | G 1 1/2 |
| Ffunkcija | normally closed (NC) |
| DN | 40 |
| A [mm] | 126.0 |
| B [mm] | 156.0 |
| Napetost | 110V AC |
| C [mm] | 126.0 |
