2/2-way solenoid valve, NC, G 1/4, PN 0-5, FPM, 12V DC
SKU: 124902RIE
EAN: 4047322726375
Media-separated 2/2-way solenoid valve, NC, brass, G 1/4, PN 0-5, direct. opera., 12V DC, Med.temp. 0 to 90, Amb.temp. 0 to 55
Media-separated solenoid valves are an important component in the control of fluids in systems. With these direct or pilot operated values only the fluid housing and the separating diaphragm come into contact with the medium.
Thus, these valves can withstand many different media (see resistance chart). In addition, the brass housing meets all the conventional potable water requirements. The direct controlled valve in the 3/2-way design can be used either as a mixing valve or for any desired flow direction.
The pilot operated valve is normally closed in the basic position. By simply turning the 3/2-way pilot valve, the basic position can be changed to normally open.
Povpraševanje
Ffunkcija: normally closed (NC)
IP zaščita: IP65 (with connector socket fitted)
Navoj: G 1/4
Notranji deli: Brass
Ohišje: Brass
Sedež ventila: Brass
Napetost: 12V DC
| Šifra | Tesnilo | DN | Max. obratovalni tlak [bar] | Napetost | Max. temperatura medija [°C] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 124902RIE | FPM | 4 | 5 | 12V DC | 90 | Ni na zalogi | ? | Povpraševanje |  |
| 125761RIE | NBR | 4 | 5 | 24V DC | 80 | Ni na zalogi | ? | Povpraševanje | |
| 125758RIE | FPM | 3 | 10 | 24V DC | 90 | Ni na zalogi | ? | Povpraševanje | |
| 125537RIE | NBR | 3 | 10 | 12V DC | 80 | Ni na zalogi | ? | Povpraševanje | |
| 125560RIE | NBR | 4 | 5 | 12V DC | 80 | Ni na zalogi | ? | Povpraševanje | |
| 125759RIE | FPM | 4 | 5 | 24V DC | 90 | Ni na zalogi | ? | Povpraševanje | |
| 124899RIE | FPM | 3 | 10 | 12V DC | 90 | Ni na zalogi | ? | Povpraševanje | |
| 125760RIE | NBR | 3 | 10 | 24V DC | 80 | Ni na zalogi | ? | Povpraševanje | |
Opis
Media-separated 2/2-way solenoid valve, NC, brass, G 1/4, PN 0-5, direct. opera., 12V DC, Med.temp. 0 to 90, Amb.temp. 0 to 55
Media-separated solenoid valves are an important component in the control of fluids in systems. With these direct or pilot operated values only the fluid housing and the separating diaphragm come into contact with the medium.
Thus, these valves can withstand many different media (see resistance chart). In addition, the brass housing meets all the conventional potable water requirements. The direct controlled valve in the 3/2-way design can be used either as a mixing valve or for any desired flow direction.
The pilot operated valve is normally closed in the basic position. By simply turning the 3/2-way pilot valve, the basic position can be changed to normally open.
Tehnični podatki in specifikacije
| IP zaščita | IP65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 5 |
| Električni priključek | Pin terminal acc. to DIN EN 175301-803 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Brass |
| Tesnilo | FPM |
| Max. sobna temperatura [°C] | 55 |
| Max. temperatura medija [°C] | 90 |
| Navoj | G 1/4 |
| Ffunkcija | normally closed (NC) |
| DN | 4 |

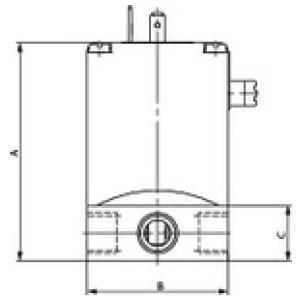

| A [mm] | 71.0 |
| B [mm] | 46.0 |
| Napetost | 12V DC |
| C [mm] | 18.0 |
