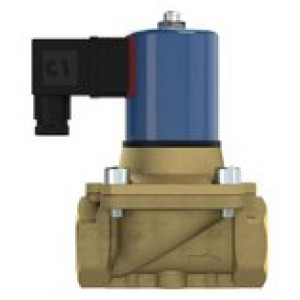

2/2 solenoid valve, NC, G1, PN 0-12, NBR, comb. opera., 230V AC slika

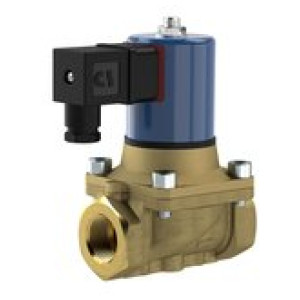

2/2 solenoid valve, NC, G1, PN 0-12, NBR, comb. opera., 230V AC slika
2/2 solenoid valve, NC, G1, PN 0-12, NBR, comb. opera., 230V AC slika

* slike so simbolične

2/2 solenoid valve, NC, G1, PN 0-12, NBR, comb. opera., 230V AC

SKU: 129438RIE
EAN: 4047322731140

2/2-way solenoid valve, NC, Brass, G1, DN25, PN 0-12, NBR, combined operated, 230V AC, Med.temp -20 to 85, Ambi.temp -10 to 50

In many areas, such as plant engineering, process technology or filling technology, solenoid valves are an optimum solution for control and regulation of fluids. With this professional standard series, RIEGLER offers fluid valves designed in Germany and produced in Europe. A consistently managed modular system guarantees a broad spectrum of possible valve forms in regards to sealing materials or valve bodies. If you cannot find your required specification in our standard products, please contact us.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Min. temperatura medija [°C] Navoj Tesnilo DN Max. temperatura medija [°C] C [mm] Napetost A [mm] B [mm] Zaloga Cena Nakup Natisni
129460RIE -20 G 1 1/4 NBR 32 85 96.0 110V AC 132.0 213.0
Ni na zalogi
? Povpraševanje Natisni
129406RIE -10 G 2 FPM 50 100 112.0 230V AC 160.0 225.0
Ni na zalogi
? Povpraševanje Natisni
129435RIE -20 G 3/8 NBR 13 85 48.0 230V AC 67.0 100.0
Ni na zalogi
? Povpraševanje Natisni
129415RIE -10 G 1/2 FPM 13 100 48.0 24V AC 67.0 100.0
Ni na zalogi
? Povpraševanje Natisni
129426RIE -10 G 1 1/2 FPM 40 100 96.0 110V AC 132.0 213.0
Ni na zalogi
? Povpraševanje Natisni
129416RIE -10 G 3/4 FPM 20 100 70.0 24V AC 95.0 139.0
Ni na zalogi
? Povpraševanje Natisni
129438RIE -20 G 1 NBR 25 85 70.0 230V AC 95.0 139.0
Ni na zalogi
? Povpraševanje Natisni
129439RIE -20 G 1 1/4 NBR 32 85 96.0 230V AC 132.0 213.0
Ni na zalogi
? Povpraševanje Natisni
129404RIE -10 G 1 1/4 FPM 32 100 96.0 230V AC 132.0 213.0
Ni na zalogi
? Povpraševanje Natisni
129451RIE -20 G 3/4 NBR 20 85 70.0 24V AC 95.0 139.0
Ni na zalogi
? Povpraševanje Natisni
129420RIE -10 G 2 FPM 50 100 112.0 24V AC 160.0 225.0
Ni na zalogi
? Povpraševanje Natisni
129449RIE -20 G 3/8 NBR 13 85 48.0 24V AC 67.0 100.0
Ni na zalogi
? Povpraševanje Natisni
129456RIE -20 G 3/8 NBR 13 85 48.0 110V AC 67.0 100.0
Ni na zalogi
? Povpraševanje Natisni
129423RIE -10 G 3/4 FPM 20 100 70.0 110V AC 95.0 139.0
Ni na zalogi
? Povpraševanje Natisni
129419RIE -10 G 1 1/2 FPM 40 100 96.0 24V AC 132.0 213.0
Ni na zalogi
? Povpraševanje Natisni
129437RIE -20 G 3/4 NBR 20 85 70.0 230V AC 95.0 139.0
Ni na zalogi
? Povpraševanje Natisni
129417RIE -10 G 1 FPM 25 100 70.0 24V AC 95.0 139.0
Ni na zalogi
? Povpraševanje Natisni
129424RIE -10 G 1 FPM 25 100 70.0 110V AC 95.0 139.0
Ni na zalogi
? Povpraševanje Natisni
129421RIE -10 G 3/8 FPM 13 100 48.0 110V AC 67.0 100.0
Ni na zalogi
? Povpraševanje Natisni
129452RIE -20 G 1 NBR 25 85 70.0 24V AC 95.0 139.0
Ni na zalogi
? Povpraševanje Natisni
129453RIE -20 G 1 1/4 NBR 32 85 96.0 24V AC 132.0 213.0
Ni na zalogi
? Povpraševanje Natisni
129450RIE -20 G 1/2 NBR 13 85 48.0 24V AC 67.0 100.0
Ni na zalogi
? Povpraševanje Natisni
129400RIE -10 G 3/8 FPM 13 100 48.0 230V AC 67.0 100.0
Ni na zalogi
? Povpraševanje Natisni
129402RIE -10 G 3/4 FPM 20 100 70.0 230V AC 95.0 139.0
Ni na zalogi
? Povpraševanje Natisni
129458RIE -20 G 3/4 NBR 20 85 70.0 110V AC 95.0 139.0
Ni na zalogi
? Povpraševanje Natisni
129441RIE -20 G 2 NBR 50 85 112.0 230V AC 160.0 225.0
Ni na zalogi
? Povpraševanje Natisni
129405RIE -10 G 1 1/2 FPM 40 100 96.0 230V AC 132.0 213.0
Ni na zalogi
? Povpraševanje Natisni
129459RIE -20 G 1 NBR 25 85 70.0 110V AC 95.0 139.0
Ni na zalogi
? Povpraševanje Natisni
129461RIE -20 G 1 1/2 NBR 40 85 96.0 110V AC 132.0 213.0
Ni na zalogi
? Povpraševanje Natisni
129462RIE -20 G 2 NBR 50 85 112.0 110V AC 160.0 225.0
Ni na zalogi
? Povpraševanje Natisni
129418RIE -10 G 1 1/4 FPM 32 100 96.0 24V AC 132.0 213.0
Ni na zalogi
? Povpraševanje Natisni
129403RIE -10 G 1 FPM 25 100 70.0 230V AC 95.0 139.0
Ni na zalogi
? Povpraševanje Natisni
129455RIE -20 G 2 NBR 50 85 112.0 24V AC 160.0 225.0
Ni na zalogi
? Povpraševanje Natisni
129414RIE -10 G 3/8 FPM 13 100 48.0 24V AC 67.0 100.0
Ni na zalogi
? Povpraševanje Natisni
129422RIE -10 G 1/2 FPM 13 100 48.0 110V AC 67.0 100.0
Ni na zalogi
? Povpraševanje Natisni
129457RIE -20 G 1/2 NBR 13 85 48.0 110V AC 67.0 100.0
Ni na zalogi
? Povpraševanje Natisni
129425RIE -10 G 1 1/4 FPM 32 100 96.0 110V AC 132.0 213.0
Ni na zalogi
? Povpraševanje Natisni
129427RIE -10 G 2 FPM 50 100 112.0 110V AC 160.0 225.0
Ni na zalogi
? Povpraševanje Natisni
129454RIE -20 G 1 1/2 NBR 40 85 96.0 24V AC 132.0 213.0
Ni na zalogi
? Povpraševanje Natisni
129436RIE -20 G 1/2 NBR 13 85 48.0 230V AC 67.0 100.0
Ni na zalogi
? Povpraševanje Natisni
129440RIE -20 G 1 1/2 NBR 40 85 96.0 230V AC 132.0 213.0
Ni na zalogi
? Povpraševanje Natisni
129401RIE -10 G 1/2 FPM 13 100 48.0 230V AC 67.0 100.0
Ni na zalogi
? Povpraševanje Natisni

Opis

2/2-way solenoid valve, NC, Brass, G1, DN25, PN 0-12, NBR, combined operated, 230V AC, Med.temp -20 to 85, Ambi.temp -10 to 50

In many areas, such as plant engineering, process technology or filling technology, solenoid valves are an optimum solution for control and regulation of fluids. With this professional standard series, RIEGLER offers fluid valves designed in Germany and produced in Europe. A consistently managed modular system guarantees a broad spectrum of possible valve forms in regards to sealing materials or valve bodies. If you cannot find your required specification in our standard products, please contact us.

Tehnični podatki in specifikacije

IP zaščita IP65 (with connector socket fitted)
Max. obratovalni tlak [bar] 12
Električni priključek Connector socket, industrial standard type A – EN 175301-803-A
Ohišje Brass
Sedež ventila Brass and stainless steel
Notranji deli Brass and stainless steel
Tesnilo NBR
Min. sobna temperatura [°C] -10
Max. sobna temperatura [°C] 50
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 85
Navoj G 1
Ffunkcija normally closed (NC)
Standardni navoj G thread acc. to DIN EN ISO 228-1
DN 25
A [mm] 95.0
B [mm] 139.0
Napetost 230V AC
C [mm] 70.0
