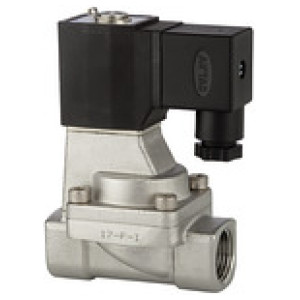

2/2-potni el.mag. ventilNC, vod. krm., 230 V, 50 Hz
SKU: 116552RIE
EAN: 4047322324274
2/2-way solenoid valve, Stainless steel, NC, pilot operated, 230 V, 50 Hz, Medium temp. max. 80°C/90°C, G 1/2, PN 0.5-10 bar
Standard series available in two different versions:
-Directly operated
-Pilot-operated
Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.
Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.
Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.
Obrestno financiranje
- 13,29 € x 12 mesecev
- 25,99 € x 6 mesecev
- 51,41 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | DN | B [mm] | C [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 116552RIE | G 1/2 | 15 | 70.0 | 107.0 | Čas dobave: Predvidoma 3 - 5 dni | 142,35 € |  | |
| 116554RIE | G 3/4 | 20 | 82.0 | 115.4 | Čas dobave: Predvidoma 3 - 5 dni | 175,01 € | | |
| 116556RIE | G 1 | 25 | 92.0 | 124.0 | Čas dobave: Predvidoma 3 - 5 dni | 218,67 € | |
Opis
2/2-way solenoid valve, Stainless steel, NC, pilot operated, 230 V, 50 Hz, Medium temp. max. 80°C/90°C, G 1/2, PN 0.5-10 bar
Standard series available in two different versions:
-Directly operated
-Pilot-operated
Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.
Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.
Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.
Tehnični podatki in specifikacije
| IP zaščita | IP 65 |
| Min. obratovalni tlak [bar] | 0.5 |
| Max. obratovalni tlak [bar] | 10 |
| Ohišje | Stainless steel 1.4301 |
| Sedež ventila | Stainless steel 1.4301 |
| Notranji deli | Stainless steel |
| Tesnilo | FPM |
| Navoj | G 1/2 |
| Vrsta | 3 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| A [mm] | 70.0 |
| B [mm] | 70.0 |
| C [mm] | 107.0 |
| DN | 15 |
