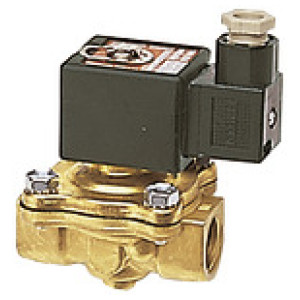

2/2-potni el.mag. ventil, NO, prisil. vod. krm., 24 V DC, 3/8
SKU: 136152RIE
EAN: 4047322502825
2/2-way solenoid valve brass, NO, force pilot operated, 24 V DC, Rp 3/8, FKM, Medium temp. -20 °C to 120 °C, PN 0 - 9 bar
Standard series, proven over many years, available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Obrestno financiranje
- 10,21 € x 36 mesecev
- 14,66 € x 24 mesecev
- 28,07 € x 12 mesecev
- 54,91 € x 6 mesecev
- 108,61 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Tesnilo | DN | Max. temperatura medija [°C] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 102853RIE | Rp 3/4 | NBR | 19 | 85 | Čas dobave: Predvidoma 3 - 5 dni | 326,23 € |  | |
| 136152RIE | Rp 3/8 | FKM | 16 | 120 | Čas dobave: Predvidoma 3 - 5 dni | 300,38 € | | |
| 102851RIE | Rp 3/8 | NBR | 16 | 85 | Čas dobave: Predvidoma 3 - 5 dni | 280,44 € | | |
| 102852RIE | Rp 1/2 | NBR | 16 | 85 | Čas dobave: Predvidoma 3 - 5 dni | 280,44 € | | |
| 136153RIE | Rp 1/2 | FKM | 16 | 120 | Čas dobave: Predvidoma 3 - 5 dni | 321,10 € | | |
| 136154RIE | Rp 3/4 | FKM | 19 | 120 | Čas dobave: Predvidoma 3 - 5 dni | 362,49 € | |
Opis
2/2-way solenoid valve brass, NO, force pilot operated, 24 V DC, Rp 3/8, FKM, Medium temp. -20 °C to 120 °C, PN 0 - 9 bar
Standard series, proven over many years, available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 9 |
| Električni priključek | ISO 4400; cable socket (Pg 11P) |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | FKM |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 50 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 120 |
| Navoj | Rp 3/8 |
| Vrsta | 3 |
| Ffunkcija | normally open (NO) |
| Standardni navoj | Rp thread acc. to ISO 7-1 |
| DN | 16 |
| A [mm] | 80.0 |
| B [mm] | 70.0 |
