2/2-potni el.mag. ventil NC, direk. upr., 230 V, 50 Hz
SKU: 116526RIE
EAN: 4047322323826
2/2-way solenoid valve, Stainless steel, NC, directly operated, 230 V, 50 Hz, Medium temp. max. 80°C/90°C, G 1/2, PN 0-10 bar
Standard series available in two different versions:
-Directly operated
-Pilot-operated
Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.
Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.
Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.
Povpraševanje
Navoj: G 1/2
Notranji deli: Stainless steel
Ohišje: Stainless steel 1.4301
Sedež ventila: Stainless steel 1.4301
Standardni navoj: G thread acc. to DIN EN ISO 228-1

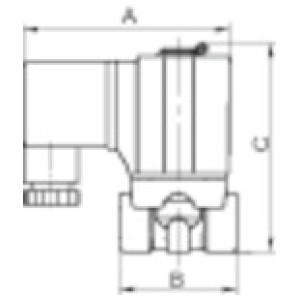

| Šifra | Navoj | DN | B [mm] | A [mm] | C [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 116520RIE | G 1/8 | 3 | 40.0 | 70.0 | 70.7 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 116526RIE | G 1/2 | 5 | 52.0 | 85.0 | 87.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116522RIE | G 1/4 | 3 | 40.0 | 70.0 | 70.7 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116524RIE | G 3/8 | 5 | 52.0 | 85.0 | 87.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
2/2-way solenoid valve, Stainless steel, NC, directly operated, 230 V, 50 Hz, Medium temp. max. 80°C/90°C, G 1/2, PN 0-10 bar
Standard series available in two different versions:
-Directly operated
-Pilot-operated
Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.
Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.
Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.
Tehnični podatki in specifikacije
| IP zaščita | IP 65 |
| Max. obratovalni tlak [bar] | 10 |
| Ohišje | Stainless steel 1.4301 |
| Sedež ventila | Stainless steel 1.4301 |
| Notranji deli | Stainless steel |
| Tesnilo | FPM |
| Navoj | G 1/2 |
| Vrsta | 1 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| A [mm] | 85.0 |
| B [mm] | 52.0 |
| C [mm] | 87.0 |
| DN | 5 |
