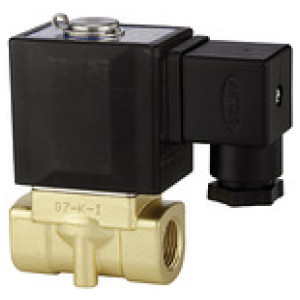

2/2-potni el.mag. ventil NC, direk. upr., 24 V DC, G 1/4
SKU: 116585RIE
EAN: 4047322324663
2/2-way solenoid valve, Brass, NC, directly operated, 24 V DC, Medium temperature max. 80 °C / 90 °C, G 1/4, PN 0 - 30 bar
Standard series available in two different versions:
-Directly operated
-Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.
Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.
Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.
Obrestno financiranje
- 19,55 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | DN | B [mm] | A [mm] | C [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 116583RIE | G 1/8 | 1.5 | 40.0 | 70.0 | 70.7 | Čas dobave: Predvidoma 3 - 5 dni | 53,92 € |  | |
| 116587RIE | G 3/8 | 3 | 52.0 | 85.0 | 87.0 | Čas dobave: Predvidoma 3 - 5 dni | 76,84 € | | |
| 116585RIE | G 1/4 | 1.5 | 40.0 | 70.0 | 70.7 | Čas dobave: Predvidoma 3 - 5 dni | 53,92 € | | |
| 116589RIE | G 1/2 | 3 | 52.0 | 85.0 | 87.0 | Čas dobave: Predvidoma 3 - 5 dni | 76,84 € | |
Opis
2/2-way solenoid valve, Brass, NC, directly operated, 24 V DC, Medium temperature max. 80 °C / 90 °C, G 1/4, PN 0 - 30 bar
Standard series available in two different versions:
-Directly operated
-Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Connector socket, form A acc. to ISO 4400, for all valves with a G 3/8 or G 1/2 thread except valve types 3 and 4.
Special connector socket (similar to form B) for all valves with a G 1/8 or G 1/4 thread except valve types 3 and 4.
Medium temperature max. 80 °C when used with water or oils, max. 90 °C when used with air.
Tehnični podatki in specifikacije
| IP zaščita | IP 65 |
| Max. obratovalni tlak [bar] | 30 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | FPM |
| Navoj | G 1/4 |
| Vrsta | 1 |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| A [mm] | 70.0 |
| B [mm] | 40.0 |
| C [mm] | 70.7 |
| DN | 1.5 |
