* slike so simbolične

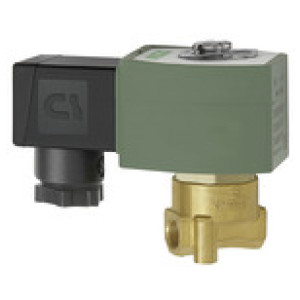

2/2-potni el.mag. ventil, NC, direk. upr., 230 V, 50 - 60 Hz
SKU: 102822RIE
EAN: 4047322157933
2/2-way solenoid valve,brass,NC,direc. operat.,230V,50-60Hz,Med. temp. -15 to 100°C,Ambient temp. -15 to 55°C,FPM,G 1/4,PN 0-12bar
Standard series, proven over many years, available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Obrestno financiranje
- 13,01 € x 12 mesecev
- 25,44 € x 6 mesecev
- 50,33 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Min. sobna temperatura [°C] | Min. temperatura medija [°C] | Navoj | Tesnilo | Vrsta | A [mm] | Max. temperatura medija [°C] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 102820RIE | -15 | -15 | G 1/8 | FPM | 1 | 75.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 120,46 € |  | |
| 102822RIE | -15 | -15 | G 1/4 | FPM | 2 | 91.0 | 100 | Čas dobave: Predvidoma 3 - 5 dni | 139,46 € | | |
| 102819RIE | -25 | -25 | G 1/8 | NBR | 1 | 75.0 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 104,75 € | | |
| 102821RIE | -25 | -25 | G 1/4 | NBR | 2 | 91.0 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 121,68 € | |
Opis
2/2-way solenoid valve,brass,NC,direc. operat.,230V,50-60Hz,Med. temp. -15 to 100°C,Ambient temp. -15 to 55°C,FPM,G 1/4,PN 0-12bar
Standard series, proven over many years, available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 12 |
| Električni priključek | ISO 4400, cable socket (Pg 11P) |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | FPM |
| Min. sobna temperatura [°C] | -15 |
| Max. sobna temperatura [°C] | 55 |
| Min. temperatura medija [°C] | -15 |
| Max. temperatura medija [°C] | 100 |
| Navoj | G 1/4 |
| Vrsta | 2 |
| Ffunkcija | normally closed (NC) |
| Standardni navoj | G thread acc. to DIN EN ISO 228-1 |
| DN | 3.2 |
| A [mm] | 91.0 |
| B [mm] | 30.0 |
