* slike so simbolične

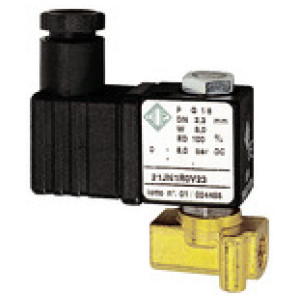

2/2-el.magn.ventil,NC,direkt.krm..,24V DC,5W,FKM,G1/8,PN0-8bar
SKU: 102890RIE
EAN: 4047322158787
2/2-way solenoid valve brass, NC, directly operated, 24V DC, 5W, Medium temp. -10°C to 140°C, FKM, G 1/8, PN 0 - 8bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Čas dobave: Predvidoma 3 - 5 dni
46,64 €

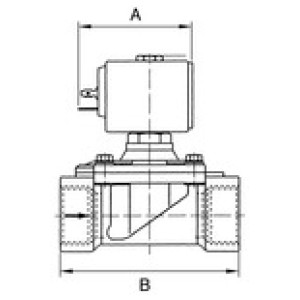

| Šifra | Navoj | Vrsta | DN | Max. obratovalni tlak [bar] | B [mm] | A [mm] | Max. sobna temperatura [°C] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 102891RIE | G 1/8 | 2 | 2.5 | 9 | 40.0 | 54.0 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 67,80 € |  | |
| 102890RIE | G 1/8 | 1 | 2.3 | 8 | 30.0 | 41.0 | 60 | Čas dobave: Predvidoma 3 - 5 dni | 46,64 € | | |
| 102894RIE | G 1/4 | 2 | 3 | 6 | 40.0 | 54.0 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 67,80 € | | |
| 102892RIE | G 1/8 | 2 | 3 | 6 | 40.0 | 54.0 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 67,80 € | | |
| 102895RIE | G 1/4 | 2 | 4.5 | 2 | 40.0 | 54.0 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 67,80 € | | |
| 102893RIE | G 1/4 | 2 | 2.5 | 9 | 40.0 | 54.0 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 67,80 € | |
Opis
2/2-way solenoid valve brass, NC, directly operated, 24V DC, 5W, Medium temp. -10°C to 140°C, FKM, G 1/8, PN 0 - 8bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP 65 (with connector socket fitted) |
| Max. obratovalni tlak [bar] | 8 |
| Električni priključek | For connector socket Pg 9/Pg 11 acc. to ISO 4400 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | FPM |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 60 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 140 |
| Navoj | G 1/8 |
| Vrsta | 1 |
| Ffunkcija | normally closed (NC) |
| DN | 2.3 |
| A [mm] | 41.0 |
| B [mm] | 30.0 |
