* slike so simbolične
2/2-el.mag.vent.,NO,vod. krm.,24V DC,NBR,G3/4,PN0.2-16bar
SKU: 102956RIE
EAN: 4047322159692

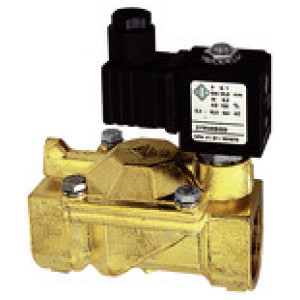

2/2-way solenoid valve brass, NO, pilot operated, 24 V DC, Medium temperature -10 °C to 90 °C, G 3/4, PN 0.2 - 16 bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Obrestno financiranje
- 16,66 € x 12 mesecev
- 32,58 € x 6 mesecev
- 64,44 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Vrsta | Max. obratovalni tlak [bar] | DN | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 102957RIE | G 1 | 6 | 16 | 25 | 104.0 | Čas dobave: Predvidoma 3 - 5 dni | 192,13 € |  | |
| 102958RIE | G 1 1/4 | 6 | 10 | 35 | 144.0 | Čas dobave: Predvidoma 3 - 5 dni | 353,02 € | | |
| 102956RIE | G 3/4 | 6 | 16 | 19 | 104.0 | Čas dobave: Predvidoma 3 - 5 dni | 177,72 € | | |
| 102959RIE | G 1 1/2 | 6 | 10 | 40 | 144.0 | Čas dobave: Predvidoma 3 - 5 dni | 372,06 € | | |
| 102954RIE | G 3/8 | 4 | 16 | 13 | 60.0 | Čas dobave: Predvidoma 3 - 5 dni | 131,26 € | | |
| 102960RIE | G 2 | 6 | 10 | 50 | 172.0 | Čas dobave: Predvidoma 3 - 5 dni | 497,06 € | | |
| 102955RIE | G 1/2 | 4 | 16 | 13 | 66.0 | Čas dobave: Predvidoma 3 - 5 dni | 131,26 € | |
Opis
2/2-way solenoid valve brass, NO, pilot operated, 24 V DC, Medium temperature -10 °C to 90 °C, G 3/4, PN 0.2 - 16 bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP 65 (with connector socket fitted) |
| Min. obratovalni tlak [bar] | 0.2 |
| Max. obratovalni tlak [bar] | 16 |
| Električni priključek | For connector socket Pg 9/Pg 11 acc. to ISO 4400 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | NBR |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 80 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 90 |
| Navoj | G 3/4 |
| Vrsta | 6 |
| Ffunkcija | normally open (NO) |
| DN | 19 |

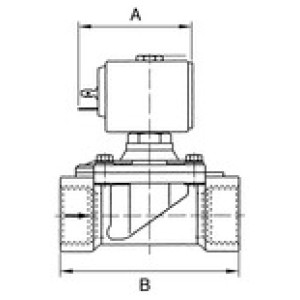

| A [mm] | 54.0 |
| B [mm] | 104.0 |
