2/2-el.mag.vent.,NC,vod. krm., 24V DC,5W,NBR,G1/2,0.2-16bar
SKU: 102940RIE
EAN: 4047322159425

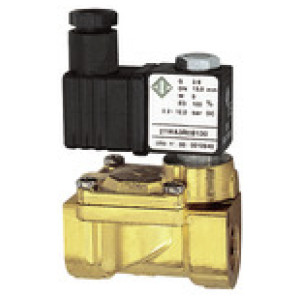

2/2-way solenoid valve brass, NC, pilot operated, 24V DC, 5W, Medium temp. -10°C to 90°C, NBR, G 1/2, PN 0.2 - 16bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Obrestno financiranje
- 14,83 € x 6 mesecev
- 29,33 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

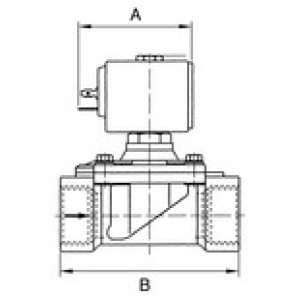

| Šifra | Navoj | Tesnilo | Min. obratovalni tlak [bar] | Vrsta | Max. obratovalni tlak [bar] | DN | B [mm] | A [mm] | Max. sobna temperatura [°C] | Max. temperatura medija [°C] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 102936RIE | G 1/2 | FPM | 0.1 | 3 | 10 | 12 | 50.0 | 54.0 | 80 | 140 | Čas dobave: Predvidoma 3 - 5 dni | 90,66 € |  | |
| 102937RIE | G 1/2 | NBR | 0.1 | 3 | 10 | 12 | 50.0 | 54.0 | 80 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 85,64 € | | |
| 102933RIE | G 3/8 | FPM | 0.2 | 4 | 16 | 13 | 60.0 | 54.0 | 80 | 140 | Čas dobave: Predvidoma 3 - 5 dni | 100,72 € | | |
| 102939RIE | G 1/2 | FPM | 0.2 | 4 | 16 | 13 | 66.0 | 54.0 | 80 | 140 | Čas dobave: Predvidoma 3 - 5 dni | 100,72 € | | |
| 102938RIE | G 1/2 | NBR | 0.2 | 4 | 16 | 13 | 66.0 | 54.0 | 80 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 95,70 € | | |
| 102942RIE | G 3/4 | NBR | 0.2 | 6 | 16 | 19 | 104.0 | 54.0 | 80 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 153,27 € | | |
| 102935RIE | G 3/8 | FPM | 0.2 | 5 | 16 | 13 | 60.0 | 40.0 | 60 | 140 | Čas dobave: Predvidoma 3 - 5 dni | 85,64 € | | |
| 102941RIE | G 1/2 | FPM | 0.2 | 5 | 16 | 13 | 66.0 | 40.0 | 60 | 140 | Čas dobave: Predvidoma 3 - 5 dni | 85,64 € | | |
| 102931RIE | G 3/8 | NBR | 0.1 | 3 | 10 | 12 | 50.0 | 54.0 | 80 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 85,64 € | | |
| 102946RIE | G 2 | NBR | 0.2 | 6 | 10 | 50 | 172.0 | 54.0 | 80 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 516,83 € | | |
| 102932RIE | G 3/8 | NBR | 0.2 | 4 | 16 | 13 | 60.0 | 54.0 | 80 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 95,70 € | | |
| 102934RIE | G 3/8 | NBR | 0.2 | 5 | 16 | 13 | 60.0 | 40.0 | 60 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 81,14 € | | |
| 102944RIE | G 1 1/4 | NBR | 0.2 | 6 | 10 | 35 | 144.0 | 54.0 | 80 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 328,92 € | | |
| 102930RIE | G 3/8 | FPM | 0.1 | 3 | 10 | 12 | 50.0 | 54.0 | 80 | 140 | Čas dobave: Predvidoma 3 - 5 dni | 90,66 € | | |
| 102945RIE | G 1 1/2 | NBR | 0.2 | 6 | 10 | 40 | 144.0 | 54.0 | 80 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 347,79 € | | |
| 102943RIE | G 1 | NBR | 0.2 | 6 | 16 | 25 | 104.0 | 54.0 | 80 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 167,65 € | | |
| 102940RIE | G 1/2 | NBR | 0.2 | 5 | 16 | 13 | 66.0 | 40.0 | 60 | 90 | Čas dobave: Predvidoma 3 - 5 dni | 81,14 € | |
Opis
2/2-way solenoid valve brass, NC, pilot operated, 24V DC, 5W, Medium temp. -10°C to 90°C, NBR, G 1/2, PN 0.2 - 16bar
Economy series available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Tehnični podatki in specifikacije
| IP zaščita | IP 65 (with connector socket fitted) |
| Min. obratovalni tlak [bar] | 0.2 |
| Max. obratovalni tlak [bar] | 16 |
| Električni priključek | For connector socket Pg 9/Pg 11 acc. to ISO 4400 |
| Ohišje | Brass |
| Sedež ventila | Brass |
| Notranji deli | Stainless steel |
| Tesnilo | NBR |
| Min. sobna temperatura [°C] | -10 |
| Max. sobna temperatura [°C] | 60 |
| Min. temperatura medija [°C] | -10 |
| Max. temperatura medija [°C] | 90 |
| Navoj | G 1/2 |
| Vrsta | 5 |
| Ffunkcija | normally closed (NC) |
| DN | 13 |
| A [mm] | 40.0 |
| B [mm] | 66.0 |
